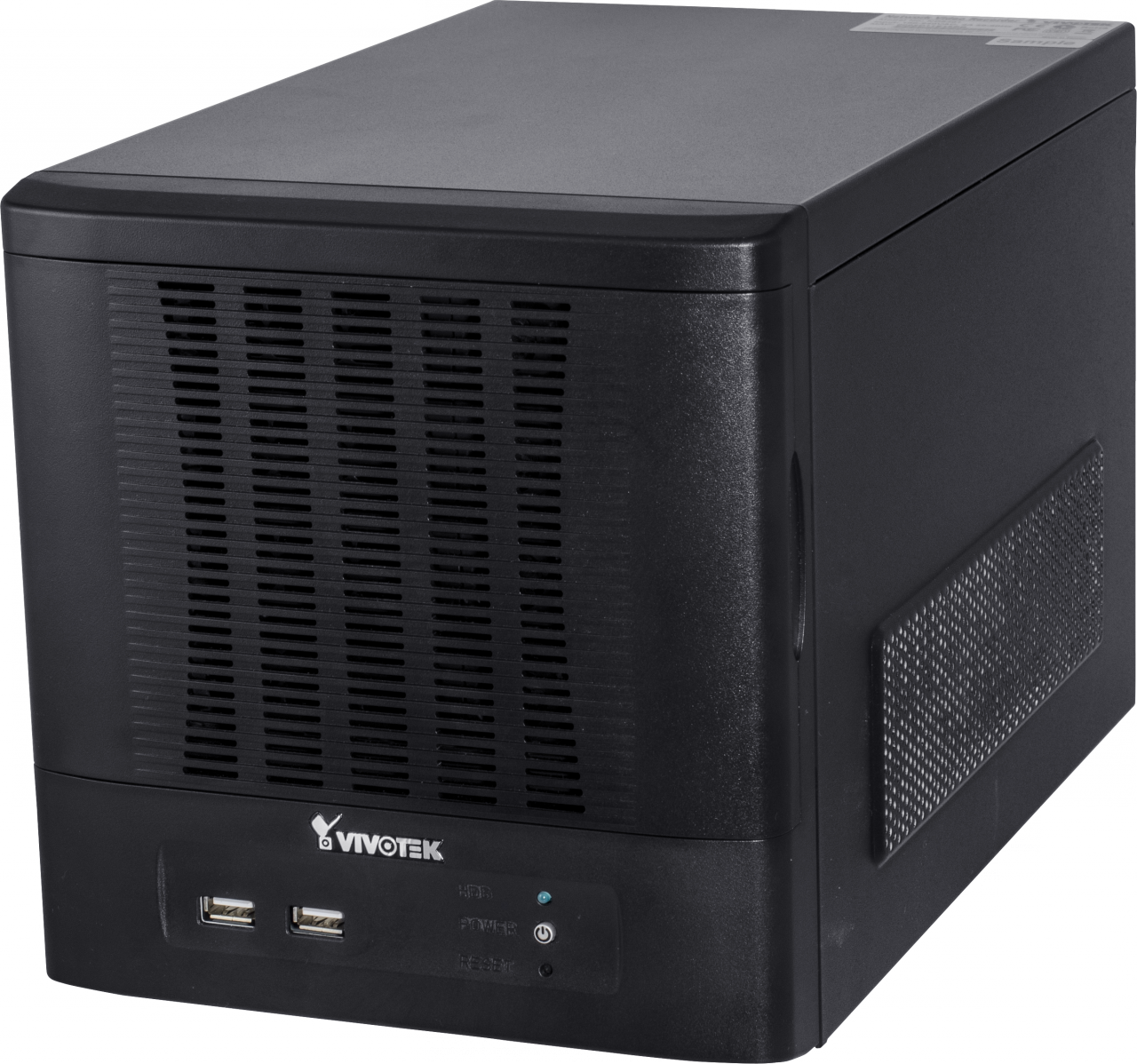

Vivotek ND8401 16-CH NVR Network Video Recorder

Vivotek ND8401 Features

• CPU: Dual-core Intel^® processor
• Camera Compatibility: Full integration with VIVOTEK network cameras, Integration with ONVIF network cameras (by project)
• Maximum Number of Cameras/Channels: 16 channel selectable
• Throughput: max. 96 Mbps
• Compression Styles: H.264, MJPEG, & MPEG-4
• Video Export Formats: N/A
• Display Layout: 1X1, 2X2, 3X3, 4X4, 1+5, 1+12
• Event Notification: Event popup windows, Instant event notification
• Alarm & Event Management: Trigger source: motion, temperature, tampering, DI/O, IR, PIR, IVA, video lost, recording error, recording status, substation connection status, storage connection status, storage capacity status, license status, network status & memory status, Actions: email, start recording, move to the preset position, set DO, GSM short message & send CGI command
• Scheduled Recording: Yes
• Event Recording: Yes
• Manual Recording: Yes
• Recording Frame Rate: N/A
• Remote Access with PC Based Web Browser: Yes
• Mobile App Support: Yes, Vivotek iViewer
• PTZ Controls: Pan/Tilt/Zoom control of Vivotek cameras
• Playback Features: Playback mode: play, pause, stop, next/frame, next/previous, speed control, Search mode: browsing, time, event, bookmark, Graphical timeline, Snapshot, Bookmark design, PiP video control, Video enhancement, Log viewer
• Hard Drive Bays: 4 x 3.5" HDD (4 x hot-swappable & lockable hard disk tray)
• Max TB per HD Bay: 3 TB
• USB Ports: 6 x USB 2.0 port
• Ethernet Ports: 2 x Gigabit RJ45 Ethernet port
• Display Port(s): 1 x VGA for Full HD local display
• Dimensions (W x H x D): 204mm (W) x 330mm (D) x 215mm (H)
• Weight: 5240 g
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Operating Humidity: 20%~95% RH
• Power Source / Consumption: AC 100-240 V, 50-60 Hz, max. 58W
• Warranty: 2 years
• What's Included: ND8401, screws & bezel keys, power adapter, quick installation guide, software CD, warranty card

Vivotek ND8401 Overview

VIVOTEK ND8401 is a 16-CH Network Video Recorder designed for sophisticated recording applications. The unit is equipped with an Intel Dual-core Atom Processor with maximum recording throughput at a robust 96 Mbps. RAID 0/1/5/10 is supported with four HDDs, with an external eSATA port for additional expansion. Like VIVOTEK NVR ND8301, a local display output port is available with full HD resolution (1920x1080), eliminating the need for a separate PC to view video from the unit. Setup of parameters such as IP address, HDD to logical volumes, and basic camera configuration can easily be performed with the setup wizard, making the ND8401 the easiest NVR to use yet. When connecting ND8401 to more than one of the same model of VIVOTEK camera, the "Shepherd" program can be used to duplicate the configuration to multiple cameras. VIVOTEK's professional software VAST is installed in ND8401 with performance tuning, allowing for simple and effective management of a surveillance system using the LiveClient and Playback programs. As VIVOTEK's camera features are fully integrated into VAST, cutting-edge technologies such as Activity Adaptive Recording can be utilized to conserve bandwidth and optimize recording. A CMS server running VAST software can also directly control the ND8401, and compatibility with the iViewer application allows for remote access to the ND8401 on handheld devices. By integrating all of the components together using VIVOTEK's ND8401, network cameras, VAST and iViewer software, users can realize a fully-featured and robust next-generation surveillance system.
