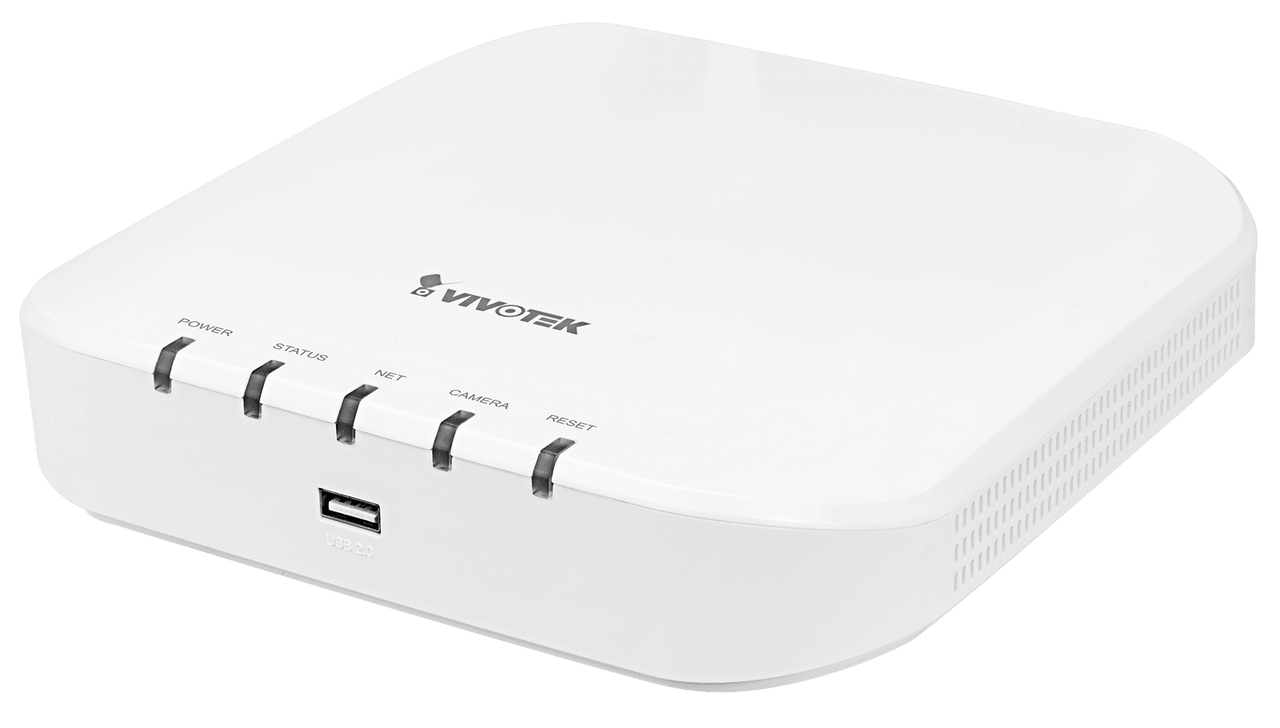

Vivotek ND9312 8-CH 4K H.265 Mini NVR

**Discontinued - Suggested Replacement ND9213P

Vivotek ND9312 Features

Device

• OS Embedded Linux
• CPU ARM Processor
• Flash 256 MB
• RAM 1 GB
• Watchdog Hardware + Software
• Power Restoration System Restart Automatically after Power Recovery

Local Display

• LiveView Display 8 Channels
• Multi-layout display: 1x1, 3V, 2x2, 3x3, 1P+3, 1M+5, 1P+6
• Video Output HDMI x1
• Display Resolution 3840x2160, 1920x1080, 1280x720
• Camera Position Change the viewcell position on the Live View screens
• Stream Application Constant\Auto Adaptive Stream
• Monitor Enhancement OSD display (NVR), OSD display (camera), camera information, remote I/O control, event notification, aspect ratio
• Fisheye Dewarp 1O, 1P, 1R, 1O3R, 1O8R
• PTZ Operation Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control

Video

• Video Format H.265, H.264, MJPEG
• Graphic Decoder Hardware decoding
• Decoding Resolution Up to 3840x2160
• Decoding Capability 3840x2160 @ 30 fps (1-CH), 1920x1080 @ 120 fps (4-CH), 1280x720 @ 240fps (8-CH)

Audio

• Audio Format G.711, G.726
• Audio In/Out HDMI with audio out

Recording

• Recording Time (sec.) Pre-Record: 5 (Max. 10)
• Post-Record: 20 (Max. 300)
• Recording Stream Single
• Recording Throughput 48 Mbps
• Recording Mode Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
• Recording Setting Recycle (unit: Day)
• Watermark Supported

Storage & Backup

• HDD Devices Internal x 1 (3.5")
• HDD Max. Capacity * Please refer to HDD supported list on the VIVOTEK website.
• Disk Management Create, format and remove disk HDD S.M.A.R.T.
• Manual Backup USB Dongle (FAT Format)
• Schedule Backup FTP

Playback

• Playback Display 4 Channels
• Multi-Layout Display: 1x1, 2x2, 1P+3, 1V+3
• Playback Control Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
• Video Search By calendar, date/time, and alarm
• Thumbnail Explorer (Storyboard) Listing the thumbnail of recorded video (Max. 2-CH)
• Snapshot JPEG
• Video Clip Export EXE

Network

• Ethernet 10/100Mbps Ethernet (RJ-45) x1
• Video Throughput for Remote Client 40 Mbps　
• Protocols IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter

External Interface

• USB Front: 1 USB 2.0 x 2 (front x1, back x1)
• Audio HDMI with audio out

System

• Camera Integration ONVIF Profile S
• Event Motion Detection, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full
• Event Action Record, email (text/snapshot), FTP, buzzer, ePTZ control (go to preset), camera DO, send to CMS, VIVOCloud APP notification 　
• User Management User level: administrator, regular user
• Log System, recording, user, error
• Date & Time Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time

Advanced Features

• Trend Micro IoT Security Service Supported

Remote Client

• Software AP Shepherd, VAST 2
• Mobile/Tablet App iViewer (Android & iOS)
• Web Browser Internet Explorer 10 (32 bit) or above/ Windows Chrome v68.0.3 & Firefox v61.02 or above/ Windows & macOS
• VIVOCloud Supported

General

• Power Input DC 12V 3A
• Power Consumption Max. 15 W
• Dimensions 198 (W) x 200 (D) x 47(H) mm
• Weight 530 g (Without HDD)
• Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
• Humidity 0 ~ 95%
• Safety Certifications CE, LVD, FCC, VCCI, C-Tick, UL
• Warranty 12 months

Vivotek ND9312 Overview

With H.265 standard and VIVOTEK’s Smart Stream technology, VIVOTEK ND9312 is not only able to provide the high quality video, also save the usage of network bandwidth and recording capacity more than regular H.264 standard. Supporting 4K IP camera video input and 4K local video output, VIVOTEK’s NVR can provide users extra high definition video resolution ensuring they will never miss a single detail in both video monitoring and recording. VIVOTEK’s NVR offers both LiveView and Playback modes for one fisheye network camera simultaneously. They also provide multiple fisheye de-warp display modes, including 1O, 1P, 1R, 1O3R, 1O8R, allowing users to monitor any angle, or to enjoy precise detailed images for a total surveillance experience. Support for plug-in free web browsers enables users with direct web viewing/setting on IE, and now also on Chrome and Firefox web browsers, for both Windows and macOS. In collaboration with industry-leading cybersecurity software partners, VIVOTEK focuses on making network security products and software that meet industry protocols as well as constantly developing shields to increase your protection from various cyberattacks. By choosing VIVOTEK solutions, users can experience not only high-quality products, but also safer network environments. The free VIVOCloud app makes surveillance lightweight and portable, ensuring efficient operation. The latest P2P technology makes remote access even more convenient, by simply scanning the QR-code and installing the app, users can view live streams and play recorded clips with the intuitive interface anytime, anywhere. Armed with the Push Notification function, users will directly get an alert message on their Android/iOS mobile device and directly playback the video to check for any suspicious activity. In order to provide users a highly intuitive experience, it allows for the IP cameras’ positions and connects to the NVR without entering long passphrases. Auto Setup Wizard then conveniently sets up a centralized configuration to reduce connection times to within 2 minutes.
