Vivotek ND9323P-2TB 8 Channel NVR Kit 64Mbps Max Throughput 2TB
Vivotek ND9323P-2TB-4FD69 8 Channel NVR Kit 64Mbps Max Throughput 2TB w/ 4 x 2MP Outdoor IR Bullet IP Security Cameras
Vivotek ND9323P-2TB-4FD69 8 Channel NVR Kit 64Mbps Max Throughput 2TB w/ 4 x 2MP Outdoor IR Bullet IP Security Cameras

Vivotek

Vivotek ND9323P-2TB-4FD69 8 Channel NVR Kit 64Mbps Max Throughput 2TB w/ 4 x 2MP Outdoor IR Bullet IP Security Cameras

$956.61
SKU: ND9323P-2TB-4FD69
Quantity:
Link to Manufacturer's Page

Contact
    Kit Includes:
  • (1) ND9323P NVR w/ 2TB Storage
  • (4) FD9360-H3 Outdoor IR Dome IP Cameras
      ND9323P NVR Features
    • 8 Channel
    • 30 fps @ 3840x2160
    • 64 Mbps Throughput
    • 2TB Storage
    • iOS/Android
    • Internet Explorer 10 or above
    • HDMI/VGA

    FD9360-H3 IP Security Camera Features
  • H.265 Compression Technology
  • 30 fps @ 1920x1080 (WDR Pro on)
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
  • Smart Stream III to Optimize Bandwidth Efficiency
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Trend Micro IoT Security
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • Complies with Section 889 of the NDAA

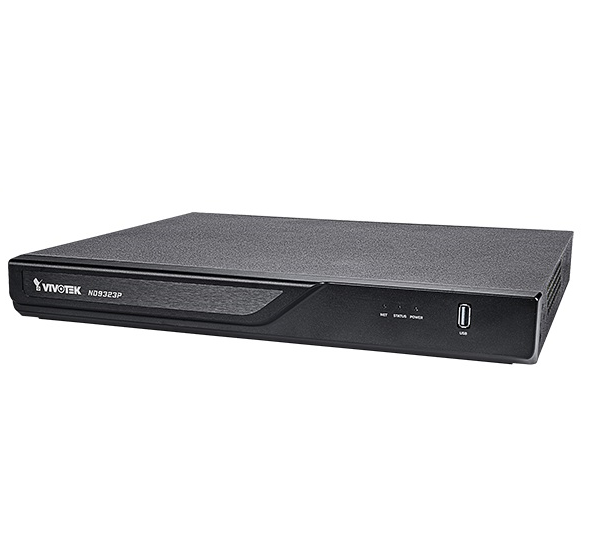

VIVOTEK's ND9323P is a H.265 Linux-based standalone NVR that supports up to 4K IP camera video decoding and local 4K video display. With advanced H.265 compression technology, users are able to experience Full HD quality video while expending less HDD capacity than H.264.

The NVR features embedded 8x 802.3 at/af PoE ports to provide users easy and convenient IP camera installation, and also supports remote and mobile access via VIVOCloud and iViewer apps for both iOS and Android devices. The VIVOCloud app provides instant push notification and direct video playback functions when triggered by an alarm notification and provides users a flexible and intelligent NVR for seamless use in small to medium sized video surveillance applications.

Specifications

  • Model - ND9323P

Device

  • OS - Embedded Linux
  • Watchdog - Hardware + Software
  • Power Restoration - System restart automatically after power recovery

Local Display

  • Live View Display - 8 Channels Multi-layout display: 1x1, 2x2, 3x3, 1M+5, 1P+3, 1P+6, 2P+3, 3V
  • Video Output - HDMI x 1, VGA x 1
  • Display Resolution - 3840 x 2160, 1920 x 1080, 1280 x 720
  • Stream Application - Constant\Auto adaptive stream
  • Fisheye Dewarp - 1O, 1P, 1R
  • PTZ Operation - Direction control, home, iris, preset, patrol (group), PiP control

Video

  • Video Format - H.265, H.264, MJPEG
  • Graphic Decoder - Hardware decoding
  • Decoding Resolution - Up to 3840x2160
  • Decoding Capability - 30FPS @ 3840x2160 (1CH), 120FPS @ 1920x1080 (4CH), 240FPS @ 1280x720 (8CH)

Audio

  • Audio Format - G.711, G.726
  • Audio In/Out - 3.5 Phone jack audio output x 1 3.5 Phone jack audio input (reserved) x 1

Record

  • Recording Time (sec.) - Pre-Record: 5 (Max. 10), Post-Record: 20 (Max. 300)
  • Recording Stream - Single
  • Recording Throughput - 64 Mbps
  • Recording Mode - Continuous, schedule, manual, event
  • Recording Setting - Recycle (unit: day)
  • Watermark - Supported

Storage & Backup

  • HDD Devices - Internal x 2 (3.5")
  • Disk Management - Create, format and remove disk HDD S.M.A.R.T
  • External Storage - USB dongle (USB 3.0)
  • Video Clip Export - USB dongle (FAT Format)
  • Schedule Backup - FTP

Playback

  • Playback Display - 4 Channels, Multi-layout display: 1x1, 2x2, 1P+3, 1V+3
  • Playback Control - Regular (play, pause, stop), rewind, next /previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
  • Video Search - By calendar, date/time, alarm
  • Thumbnail Explorer (Storyboard) - Listing the thumbnail of recorded video (Max. 2 CH)
  • Snapshot - JPEG
  • Video Clip Export - EXE

Network

  • Ethernet - 10/100/1000Mbps Ethernet (RJ-45) x 1
  • Network Throughput Input / Output Total - 88 Mbps
  • PoE - 802.3at/af compliant PoE ports x 8 (Total Max. 120 W) * DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk
  • PoE Management - Supported
  • Protocols - IPv 4, IPv 6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter

External Interface

  • USB - Front: 1 (USB 3.0), Back: 1 (USB 2.0)
  • Alarm In - 4
  • Alarm Out - 1
  • Audio - 3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input (Reserved) x1

System

  • Camera Integration - ONVIF Profile S
  • Event - Motion Detection, Smart VCA Ev ent, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error
  • Event Action - Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, sy stem), full screen, send to CMS, VIVOCloud APP Notification
  • User Management - User level: administrator, regular user
  • Log - System, recording, user, error
  • Date & Time - Time zone, manual, automatic sync NTP, daylight saving time
  • Language - Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese

Advance Features

  • VCA Counting Solution - Supported
  • VCA Event Search - Supported

Remote Client

  • Software AP - Shepherd, VAST 2
  • Mobile/Tablet App - iViewer (Android & iOS)
  • Web Browser - Internet Explorer 10 (32 bit) or later / Windows Chrome v68.0.3 or later / Windows for new web
  • VIVOCloud - Supported

General

  • Power Input - 100-240V AC, 50/60Hz
  • Power Consumption - Max. 175W
  • Dimensions - 366 (W) x 320.3 (D) x 46 (H)mm
  • Weight - 2.5 kg (Without HDD)
  • Operating Temperature - 32°F ~ 104°F
  • Humidity - 0 ~ 95%
  • Safety Certifications - CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
  • Warranty - 36 months
