Vivotek ND9541

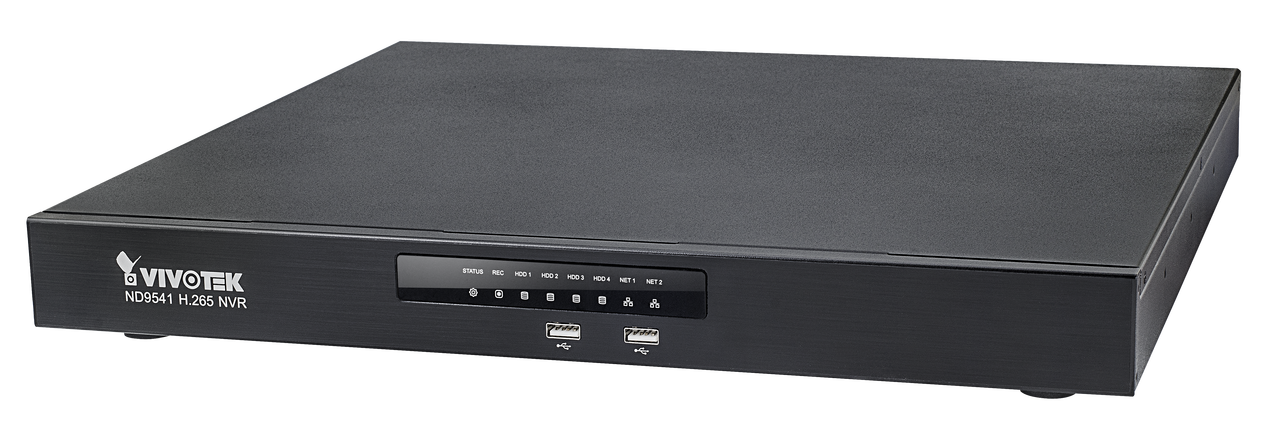

Vivotek ND9541 32-Channel H.265 NVR

Vivotek

Vivotek ND9541 32-Channel H.265 NVR

$1,053.00
Discontinued
SKU: ND9541

Discontinued - Recommended Replacement: ND9542P

Link to Manufacturer's Page

Contact

Vivotek ND9541 Features

  • CPU: ARM Processor, Embedded Linux OS
  • Camera Compatibility: Full integration with VIVOTEK network cameras, ONVIF compliant
  • Maximum Number of Cameras/Channels: 32
  • Throughput: Max. 192 Mbps
  • Compression Styles: MJPEG, H.264, H.265
  • Video Clip Export: EXE
  • LiveView Display Layout: 1x1, 1x3 (Corridor View), 2x2, 3x3, 4x4, 1+5, 1+3, 1+12, 1+1+3 (1P), 1+3+3 (1P), 1+31
  • Event Notification: Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO
  • Alarm & Event Management: Motion Detection, PIR Detection, Tampering Detection, Digital Input (Camera), Digital Output (Camera), Connection Abnormal, Storage Abnormal, Storage Full, Camera Network Loss, DI, DO
  • Scheduled Recording: Yes
  • Event Recording: Yes
  • Manual Recording: Yes
  • Recording Frame Rate: H.265/H.264: 2560x1920 @ 30 fps (1-CH), 1920x1080 @ 120 fps (4-CH), 1280x720 @ 240 fps (8-CH), 1280x720 @ 480 fps (16-CH), 720x480 @ 960 fps (32-CH)
  • Remote Access with PC Based Web Browser: Yes
  • Mobile App Support: EZConnect (iOS/Android), iViewer (iOS/Android)
  • PTZ Controls: Panel Control, Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control
  • Playback Features: Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)
  • Hard Drive Bays: 4 x 3.5" HDD
  • Max TB per HD Bay: 8 TB (HDs must be purchased separately)
  • USB Ports: Front: 2 (USB 2.0) Back: 1 (USB 3.0)
  • Ethernet Ports: 1 RS485 Port (Reserved)
  • Display Port(s): 1 x HDMI, 1 x VGA
  • PoE Ports: None (switch must be purchased separately)
  • Dimensions (W x H x D): 430 (W) x 400 (D) x 44.5 (H) mm
  • Weight: 3.87 kg / 8.53 lb (without HDD)
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Operating Humidity: 0 ~ 95%
  • Power Source / Consumption: DC 56V 2.5A / Max. 120 W
  • Warranty: 2 years
  • What's Included: NVR, Power Adapter, Power Cord, Quick Installation Guide, 32 x H.D.D. Screws, 8 x H.D.D. Brackets, 1 x USB Mouse, 4 x SATA Cables, CD (User's Manual, Quick Installation Guide (QIG), Installation Wizard 2)

Vivotek ND9541 Overview

VIVOTEK’s ND9441 and ND9541 are the brand new H.265 Linux-based embedded standalone NVRs. Equipped for up to 16-CH/32-CH network cameras, the NVRs feature well-built ONVIF compliant and scalable configuration with VAST CMS empowering users to set up and manage advanced IP surveillance systems with ease. Both NVRs also support remote and mobile access, via EZConnect and iViewer app, for both iOS and Android handheld devices, providing users an open, flexible and intelligent NVRs for seamless use in small to medium sized video surveillance applications.

With H.265 compression technology and embedded with 4 HDD design up providing up to 24TB, the ND9441 and the ND9541 offer greater than 30% more recording capacity than systems employing H.264 compression. This advance gives users larger storage space for longer durations of video recording. In order to provide uninterrupted service even when the network is temporally disrupted, both NVRs are also equipped with dual Ethernet ports, as well as providing the flexibility to connect with network cameras in network failover situations.
Further enabling the recording of high-quality and detailed images, the ND9441 and the ND9541 support a maximum network camera resolution of 12-Megapixels. To intelligently manage bandwidth while maintaining this high-quality, the “Auto Adaptive Stream” function will adjust the display resolution automatically for each different layout type.
Moreover, both NVRs support VIVOTEK’s fisheye network camera “Fisheye Dewarp” function, which provides multiple de-warping modes in live view and playback, ensuring the correct angle of video view and detailed information for flexible usage. Further, to quickly and intuitively find any target event, the ND9441 and the ND9541 are equipped with “Story-Board Search” function, which provides a glimpse of past recordings over an intuitive timeline.

Finally, the ND9441 and the ND9541 support HDMI and VGA local video output, so users can control the GUI OSD interface via mouse & keyboard, eliminating the need for a separate PC to search video or playback from the NVRs. Moreover, the intuitive and friendly VIVOTEK GUI design gives users an even smoother experience of control than ever before.
