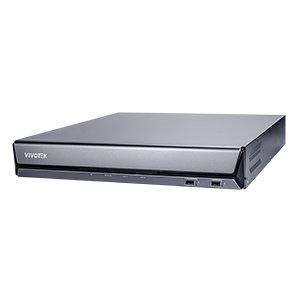

Vivotek ND9542P H.265 32-CH Embedded PoE NVR
Quantity:
- 1080P 360 fps with H.265 Compression Technology
- Up to 20MP Cameras Supported
- 4K Video Output Display for Clear and Detailed Monitoring
- Deep Search (Attribute Search, Scene Search)
- VIVOTEK Smart VCA Camera Supported for Event Search & Recording
- 802.3at/af PoE with PoE Management
- RAID 0, 1, 5 Supported to Prevent from Recording Data Loss
- Alarm In *16, Alarm Out *8
- Trend Micro IoT Security & Cybersecurity Management
- VIVOCloud App, VAST 2, and VSS (coming soon)
- Made in Taiwan
Highlight Feature
Next Generation NVR Firmware: Core+AI
Core+ AI firmware take Core+ up a level. Core+ AI NVR's are empowered with Deep Search, utilizing AI to provide the fastest, smartest and most efficient evidence search user experience. VIVOTEK cameras enabled with Vision Object Analytics provide the metadata used by Deep Search's AI. Deep Search is comprised of two main functions: Attribute Search and Scene Search.
Deep Search: Attribute Search
Attribute Search uses people and vehicles as search criteria utilizing multiple attributes (e.g., gender, age group, clothing or car color, vehicle type, etc.) to quickly and accurately find the person / vehicle of interest.
Deep Search: Scene Search
Scene search allows users to search a specific camera's video footage using line crossing detection, intrusion detection, or loitering detection.
Smart VCA Event Search
ND9542P supports alarm management and event search of VIVOTEK's deep-learning video analytics technology, Smart VCA. Users can search by single or multiple event types, playback triggered events and then export these search results to video clips.
*Requires Smart VCA enabled cameras
*Requires Smart VCA enabled cameras
4K IP Camera Video Input and 4K Local Video Output
Supporting 4K IP camera video input and 4K local video output, VIVOTEK’s ND9542P can provide users extra high definition video resolution ensuring they will never miss a single detail in both video monitoring and recording.
VIVOCloud App & Portal for 24/7 Viewing
The free VIVOCloud app makes surveillance lightweight and portable, ensuring efficient operation. The latest P2P technology makes remote access even more convenient, by simply scanning the QR-code and installing the app, users can view live streams and play recorded clips with the intuitive interface anytime, anywhere. Armed with the Push Notification function, users will directly get an alert message on their Android/iOS mobile device and directly playback the video to check for any suspicious activity.
Device
- Model
- ND9542P
- OS
- Embedded Linux
- Watchdog
- Hardware + Software
- Power Restoration
- System Restart Automatically after Power Recovery
Display
- LiveView Display
- 32 Channels
Multi-Layout Display: 1x1, 2x2, 3x3, 1P+3,2P+3,1M+5, 1P+6, 3V,1M+12, 4x4, 1M+31
- Video Output
- HDMI x1, VGA x1
- Display Resolution
- 3840x2160, 1920x1080, 1280x720
- Fisheye Dewarp
- Local: 1O, 1R, 1P, 1O3R, 1O8R, 1P3R
Web: 1O, 1R, 1P
- PTZ Operation
- Direction Control, Home, Iris, Preset, Patrol (Group)
Video
- Video Format
- H.265, H.264, MJPEG
- Graphic Decoder
- Hardware decoding
- Decoding Resolution
- Up to 7680x2560
- Decoding Capability
- H.265/H.264:
3840x2160 @ 90 fps (3-CH)
1920x1080 @ 360 fps (12-CH)
Audio
- Audio Format
- G.711, G.726
- Audio In/Out
- 3.5 Phone Jack Audio Output x1
3.5 Phone Jack Audio Input (Reserved) x1
Record
- Recording Time (sec.)
- Pre-Record: 5 (Max. 10)
Post-Record: 20 (Max. 300)
- Recording Stream
- Dual
- Recording Throughput
- 192 Mbps
- Recording Mode
- Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
- Recording Setting
- Recycle (unit: Day)
- Watermark
- Supported
Storage & Backup
- HDD Devices
- Internal x4 (3.5")
*HDD purchased separately.
- HDD Max. Capacity
- *Please refer to the recommended HDD list on the VIVOTEK website.
- RAID
- RAID 0, 1, 5
- Disk Management
- Create, Format and Remove Disk
HDD S.M.A.R.T.
- External Storage
- USB Storage (USB 3.0)
- Video Clip Export
- USB Dongle (FAT Format)
- Schedule Backup
- FTP
Playback
- Playback Display
- 4 Channels
Multi-Layout Display: 1x1, 2x2, 1P+3, 3V
- Playback Control
- Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
- Video Search
- By calendar, date/time, and alarm
- Thumbnail Explorer (Storyboard)
- Listing the thumbnail of recorded video (Max. 2-CH)
- Snapshot
- JPEG
- Video Clip Export
- Supported
Network
- Ethernet
- 10/100/1000Mbps Ethernet (RJ-45) x2
- Network Throughput Input/Output Total
- 224 Mbps
- PoE
- 802.3at/af compliant PoE ports x 16 (Total Max. 200 W)
* DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.
- PoE Management
- Supported
- Protocols
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS
External Interface
- USB
- Front: 2 (USB 2.0)
Back: 1 (USB 3.0)
- Alarm In
- 16
- Alarm Out
- 8
- Audio
- 3.5 Phone Jack Audio Output x1
3.5 Phone Jack Audio Input (Reserved) x1
- RS485
- 1 (Reserved)
System
- Camera Integration
- ONVIF Profile S
- Event
- Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Fan error
- Event Action
- Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, VIVOCloud APP Notification
- User Management
- User level: administrator, regular user
- Log
- System, recording, user, error
- Date & Time
- Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
- Language
- Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic
Deep Search
- Object Search
- People, Vehicle
- Scene Search
- Line crossing, Intrusion, Loitering
- Attribute Search
- People: Gender, Age, Clothing Color, Accessories
Vehicles: Type, Color
Advanced Features
- VCA Counting Solution
- Supported
- VCA Event Search
- Supported
- Smart Search II
- Supported
- Trend Micro IoT Security
- Supported
- Cybersecurity Management
- Supported
Remote Client
- Software AP
- Shepherd, VAST 2, VSS (coming soon)
- Mobile/Tablet App
- iViewer (Android & iOS)
- Web Browser
- Chrome
- VIVOCloud
- Supported
General
- Power Input
- 100-240V AC, 50/60Hz
- Power Consumption
- Max. 300 W
- Dimensions
- 432 (W) x 421 (D) x 66 (H) mm
- Weight
- 4.6 kg (without HDD)
- Operating Temperature
- -10°C ~ 55°C (14°F ~ 131°F)
- Humidity
- 0 ~ 95%
- Safety Certifications
- CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
- Warranty
- 36 months
