Vivotek NR8201
Vivotek NR8201 back diagram
Vivotek NR8201 banner
Network Camera Store is an Authorized Vivotek Reseller

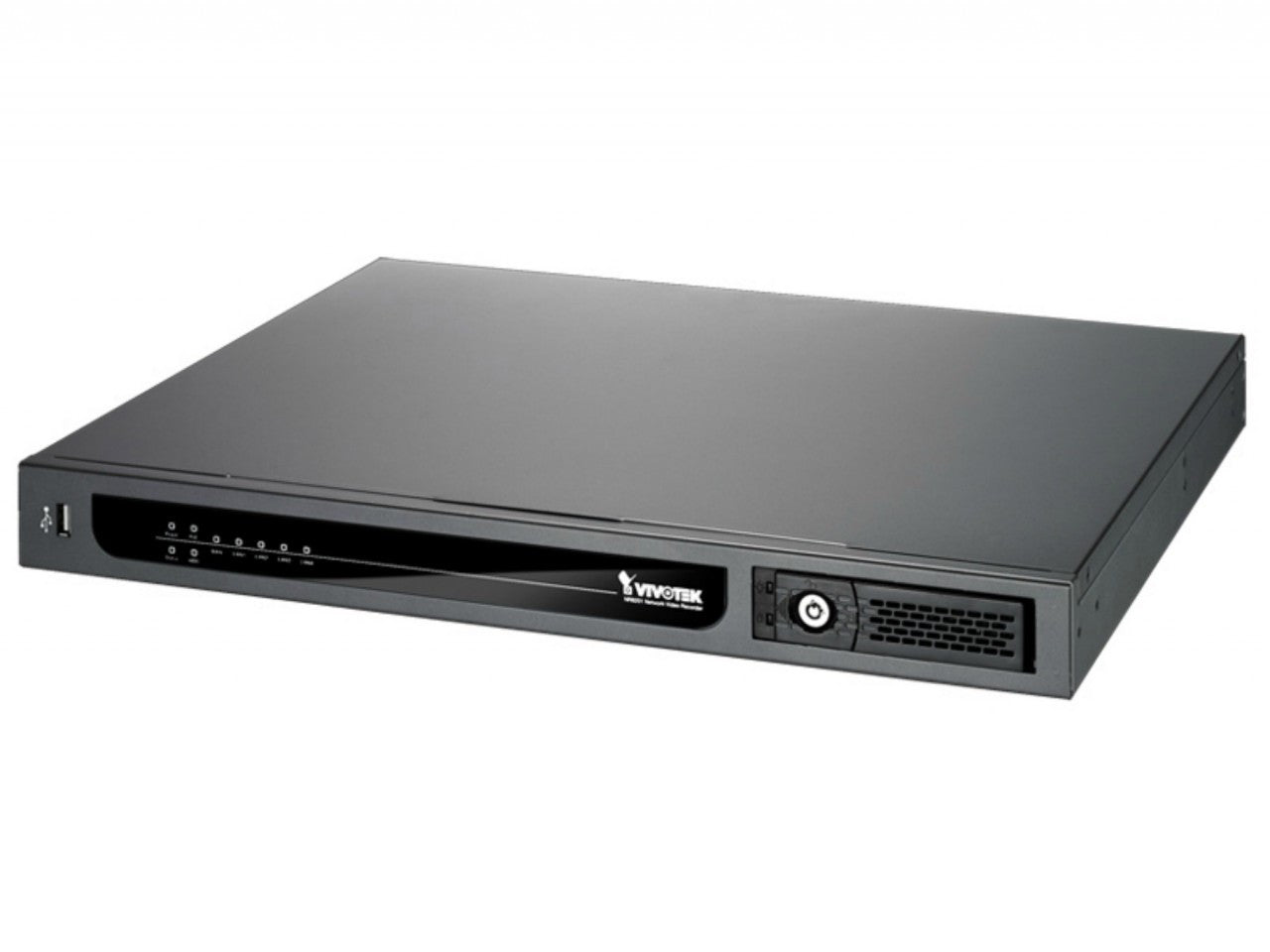

Vivotek NR8201 4 Channel PoE Network Video Recorder


Vivotek NR8201 4 Channel PoE Network Video Recorder

Sale price$485.00
SKU: NR8201

Discontinued; replaced by the ND8301.

Vivotek NR8201 Features

  • CPU: Marvell 88F6281 1.2G
  • Camera Compatibility: Supports all series of Vivotek network cameras
  • Maximum Number of Cameras/Channels: 4
  • Throughput: 4 x 30fps @ 1080P, Total 16 Mbps
  • Compression Styles: H.264, MPEG-4 and MJPEG
  • Video Export Formats: N/A
  • Display Layout: N/A
  • Event Notification: Yes
  • Alarm & Event Management: 4 D/I & 1 D/O for external sensor and alarm, event notification using SMTP
  • Scheduled Recording: Yes
  • Event Recording: Yes
  • Manual Recording: Yes
  • Recording Frame Rate:
  • Remote Access with PC Based Web Browser: Yes
  • Mobile App Support:, Yes, Vivotek iViewer
  • PTZ Controls: Pan/tilt/zoom control of Vivotek cameras
  • Playback Features: Playback of recorded media with time navigations
  • Hard Drive Bays: 1 x 3.5" SATA I/II HDD
  • Max TB per HD Bay: 2TB
  • USB Ports: 1 x USB socket for backup
  • Ethernet Ports: 10/100 BaseTX Ethernet x 4, RJ45 (4 LAN ports)
  • Display Port(s): N/A, connects to PC via built-in LAN ports
  • Dimensions (W x H x D): 330.2mm x 43.6mm x 446.4mm
  • Weight: 4000 g
  • Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
  • Operating Humidity: 20% ~ 80%
  • Power Source / Consumption: 802.3af Power-over-Ethernet (Class 1), 100 ~ 240V AC, Power consumption: Max. 0.48 W (without PoE cameras), Power consumption: Max. 60 W (with 4 PoE cameras)
  • Warranty: 2 years
  • What's Included: NR8201, mounting kit, power adapter, quick installation guide, software CD, warranty card

Vivotek NR8201 Overview

The NR8201 network video recorder is a professional-quality device that contains numerous security and convenience features. This device offers 4 channels with 802.3af compliant PoE (Power-over-Ethernet) which allows for easier installation with less cables. The device also serves as a gateway between your regular computer network and your security network. This helps to separate your standard network and security network traffic, greatly increasing efficiency where bandwidth usage is concerned. This device can be configured to operate with a proxy server. The NR8201 also contains powerful storage and backup features, making the NR8201 network video recorder a suitable choice for professional level security monitoring. The NR8201 network video recorder has capacity for a full 2 Terabytes worth of storage. This incredible capacity can be further augmented with the addition of an external storage device via the eSATA interface. This allows you to expand the storage capacity to truly impressive levels and to be ready to accommodate any need to store vast amounts of video and audio footage. The NR8201 network video recorder allows real time monitoring in any of the most popular formats, including H.264, MPEG-4 and MJPEG formats. In addition to its gateway features, this device helps to manage network usage by utilizing these compact, efficient formats for the transmission of video. The NR8201 network video recorder can be backed up quite easily via its onboard USB interface. Any camera connected to the NR8201 network video recorder will automatically be added to the system. The cameras can be set to record manually, continuously or based on events.
