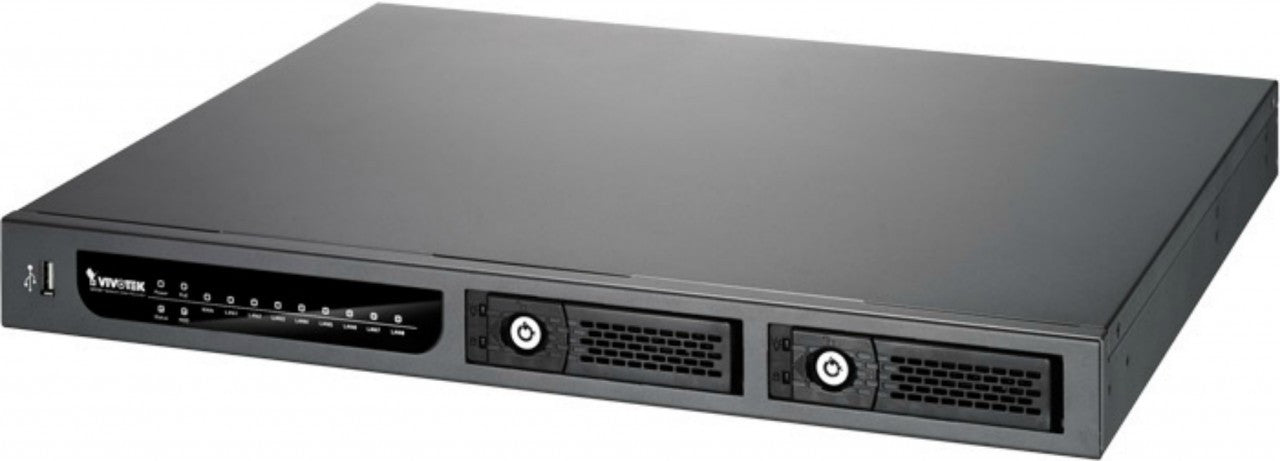

Vivotek NR8301 8-CH PoE NVR Network Video Recorder


Vivotek NR8301 8-CH PoE NVR Network Video Recorder

Sale price$750.00
SKU: NR8301

Discontinued; replaced by the ND8301.

Vivotek NR8301 Features

  • CPU: Marvell 88F6281 1.2G
  • Camera Compatibility: Supports all series of Vivotek network cameras
  • Maximum Number of Cameras/Channels: 8
  • Throughput: 4 x 30fps @ 1080P, 50 Mbps
  • Compression Styles: H.264, MJPEG, and MPEG-4
  • Video Export Formats: N/A
  • Display Layout: N/A
  • Event Notification: Yes
  • Alarm & Event Management: 4 D/I & 1 D/O for external sensor and alarm, event notification using SMTP
  • Scheduled Recording: Yes
  • Event Recording: Yes
  • Manual Recording: Yes
  • Recording Frame Rate: N/A
  • Remote Access with PC Based Web Browser: Yes
  • Mobile App Support: Yes, Vivotek iViewer
  • PTZ Controls: Pan/tilt/zoom control of Vivotek cameras
  • Playback Features: Playback of recorded media with time navigations
  • Hard Drive Bays: 2 x 3.5" SATA I/II HDD
  • Max TB per HD Bay: 4TB
  • USB Ports: USB socket for backup
  • Ethernet Ports: 8 x Ethernet 10/100 BaseTX, RJ45 (8 LAN ports)
  • Display Port(s): N/A, connects to PC via built-in LAN ports
  • Dimensions (W x H x D): 330.2mm x 43.6mm x 446.4mm
  • Weight: 4700 g
  • Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
  • Operating Humidity: 20% ~ 80%
  • Power Source / Consumption: 802.3af Power-over-Ethernet (Class 1), 100 ~ 240V AC, Power consumption: Max. 0.96 W (no PoE cameras), Power consumption: Max. 120 W (with 8 PoE cameras)
  • Warranty: 24 months
  • What's Included: NR8301, power adapter, quick installation guide, software CD, warranty card

Vivotek NR8301 Overview

The NR8301 network video recorder is a professional-quality device that is still easy to use. Cameras that are plugged into the device are automatically detected and monitored. The NR8301 network video recorder can record in several different formats. A full 8 channels can be recorded in H.264, MPEG-4 or MJPEG formats. The recorder is also able to accept Power over Ethernet (PoE) connections. This means that it can be located anywhere there is a network cord available, even if there isn’t an outlet. It’s compliant with 802.3af standards. Backup on the NR8301 network video recorder can be done via a USB port. The recorder can accommodate RAID 1 and RAID 0 configurations, allowed better write speed and more data redundancy. The recorder is also efficient where bandwidth is concerned. The NR8301 network video recorder is equipped with its own gateway, which is a powerful tool for managing network resources. The camera is compliant with 802.3af technology. The NR8301 network video recorder allows for real-time monitoring of any location where a camera is installed. The NR8301 network video recorder also records in high-definition and can be set to record based on alarms or the state of security sensors. It can serve as a gateway between the video and network components of your security system. The NR8301 network video recorder is professional grade, but provides a cost-effective solution for installations needing top-notch security monitoring and for networks that are heavily managed where bandwidth is concerned.
