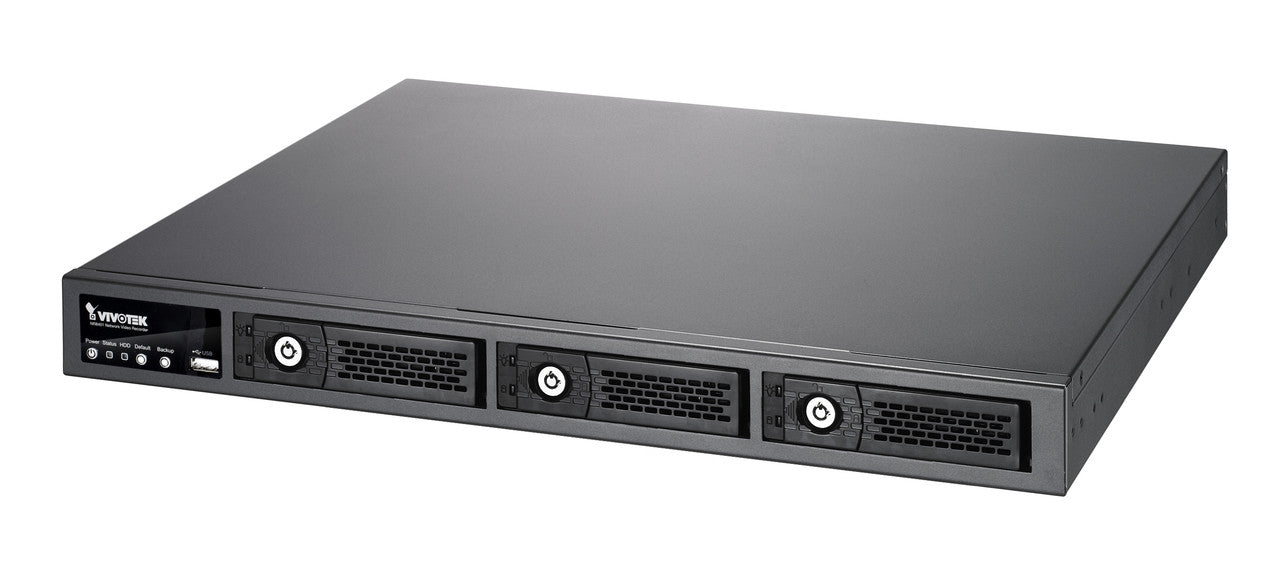

Vivotek NR8401 16-CH NVR Network Video Recorder

Vivotek

Vivotek NR8401 16-CH NVR Network Video Recorder

Sale price$935.00
Discontinued
SKU: NR8401

Vivotek NR8401 Features

  • Camera Compatibility: Full integration with VIVOTEK network cameras
  • Maximum Number of Cameras/Channels: 16 channel selectable
  • Throughput: Total: 16x30 fps @ 1080p, 96 Mbps
  • Compression Styles: H.264 & MPEG-4
  • Video Export Formats: N/A
  • Display Layout: 1x1/2x2/1+3
  • Event Notification: Yes
  • Alarm & Event Management: Source: motion, camera DI/DO, NVR DI/DO, Actions: recording, email, buzzer, FTP, HTTP, camera preset position, camera DO, NVR DO, Alarm history search (motion, DI, DO)
  • Scheduled Recording: Yes
  • Event Recording: Yes
  • Manual Recording: Yes
  • Recording Frame Rate: N/A
  • Remote Access with PC Based Web Browser: Yes
  • Mobile App Support: Yes, Vivotek iViewer (iOS/Android)
  • PTZ Controls: Pan/Tilt/Zoom control of Vivotek cameras
  • Playback Features: Playback Mode: play, pause, stop, next/frame, speed up/down (1/8, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64), 4-channel synchronous playback, Search Mode: date/time mode, alarm mode (motion, DI/DO, Bookmark), Graphical timeline, Snapshot, Bookmark design, Audio control, Export: 3GP/EXE
  • Hard Drive Bays: 4 x 3.5"HDD (3 x hot-swappable & lockable hard disk tray, 1 x internal hard disk tray)
  • Max TB per HD Bay: 4TB
  • USB Ports: 3 x USB 2.0 port (1 x front / 2 x back)
  • Ethernet Ports: 2 x Gigabit RJ45 ethernet port
  • Display Port(s): N/A, connects to PC via built-in LAN ports
  • Dimensions (W x H x D): 430mm (W) x 421mm (D) x 44mm (H)
  • Weight: 7200 g (without HHD)
  • Operating Temperature: 0°C ~ 40°C ( 32°F ~ 104°F )
  • Operating Humidity: 20% ~ 95% RH
  • Power Source / Consumption: AC 100-240 V, 50-60 Hz, Max. 70W power consumption
  • Warranty: 2 years
  • What's Included: NR8401, screws, chassis ears, bezel keys, foot pads, power adapter, quick installation guide, software CD, warranty card

Vivotek NR8401 Overview

NR8401 is the 16-channel Linux embedded NVR from VIVOTEK, bringing stable and efficient system operation under a wide range of recording/network management/system settings. The unit supports all VIVOTEK camera models, including the latest 5-Megapixel and fisheye cameras. The NR8401 is equipped with two gigabit ethernet RJ45 ports which provide network failover/load balance functionality to avoid the risk of recording loss. The front panel provides an easy backup button for users to backup/restore NVR configurations, which is very useful for a rackmount chassis system. Up to 4 HDDs can be added to the NR8401 for a total storage capacity of up to 12TB (3TB*4). Three removable HDD trays are available in the front of the unit, with hot-swap functionality for easy replacement, and support the RAID 0/1/5 application for video data protection and mirroring. A CMS server running VAST software can also directly control the NR8401, and compatibility with the iViewer application allows for remote access to the NR8401 on handheld devices. By integrating all of the components together using VIVOTEK's NR8401, network cameras, VAST, and iViewer software, users can realize a fully-featured and robust next-generation surveillance system.
