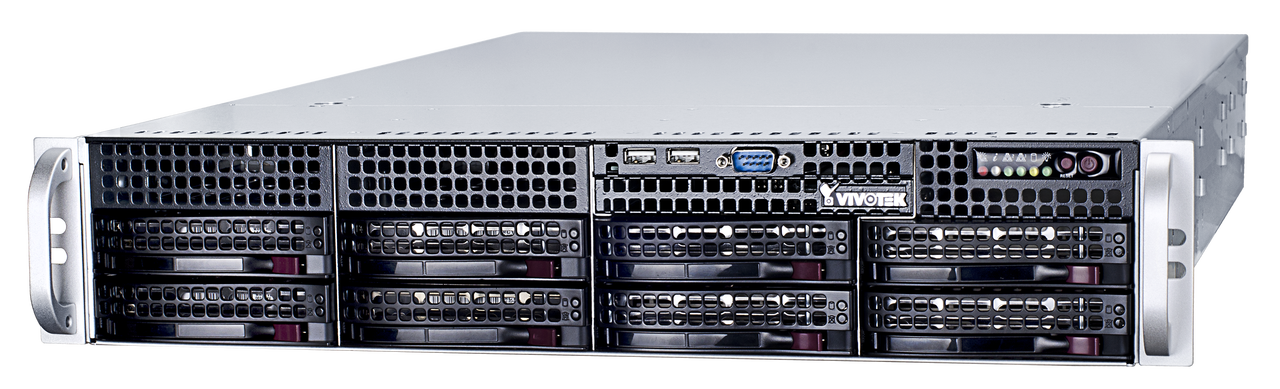

Vivotek NR9581 32-Channel H.265 Rackmount NVR

Discontinued Recommended Replacement:

NR9682-V2 or NR9581(A)

Vivotek NR9581 Features

• CPU: Intel i5 Processor, Embedded Windows OS

• Camera Compatibility: Full integration with VIVOTEK network cameras
• Maximum Number of Cameras/Channels: 32
• Throughput: Max. 500 Mbps (recording)
• Compression Styles: MJPEG, MPEG4, H.264 AVC, H.264 SVC, H.265
• Video Clip Export: AVI, 3GP & EXE
• LiveView Display Layout: 32-Channel (with Dual Monitors); Multi Layout Display: 1x1, 2x2, 1+5, 3x3, 1+12, 4x4, 5x5, 1+31, 1P+2, 1P+6, 1P+8, 2V, 3V, 4V, 2V+3; Single Layout Display, Full Screen Display, Sequential Display

• Event Notification: Email, Start Recording, Set DO, GSM Short Message, HTTP & Client Notification
• Alarm & Event Management: Motion, DI/O, Video Lost/Restore, PIR, Tampering, Temperature, IR, Line Crossing Detection, Loitering Detection, Field Detection
• Recording Modes: AVI, 3GP & EXE
• Recording Frame Rate: N/A
• Remote Access with PC Based Web Browser: Yes
• Mobile App Support: iViewer (iOS/Android)
• Hard Drive Bays: 8 x 3.5" HDD
• Max TB per HD Bay: 10 TB (HDs must be purchased separately)
• USB Ports: USB 2.0 x4; USB 3.0 x2
• Ethernet Ports: 1 RS485 Port (Reserved)
• Display Port(s): HDMI x1, Display Port x1, VGA x1, DVI x1
• PoE Ports: None (switch must be purchased separately)
• Dimensions (W x H x D): 89 (H) x 437 (W) x 648 (D) mm
• Weight: 27 kg / 59.52 lb (without HDD)
• Operating Temperature: 5°C ~ 35°C (41°F ~ 95°F)

• Operating Humidity: 0 ~ 95%

• Power Source / Consumption: Redundant Power 100~220V AC / Max. 740 W
• Warranty: 3 years
• What's Included: NVR, Power Cord, Quick Installation Guide, 8x H.D.D. Tray, 1x USB Mouse

Vivotek NR9581 Overview

VIVOTEK’s NR9581 is a full-featured high-performance H.265 NVR. Equipped with a 2U 32-CH 8 Bay Rackmount network appliance, standard RAID capability and H.265 video codec, the total storage capacity of the NVR also endows the NR9581 with scalability and flexibility, making it perfect for large-scale transport or industrial applications as well as public spaces such as campuses.

The NR9581’s 8 hard-drive bay design provides for a storage capacity of up to 48TBs, offering greater than 30% ~ 50% more recording capacity than systems employing H.264 compression. This advance affords users larger storage space for longer durations of video recording. The RAID 0/1/5/6/10 configuration provides further data security in the rare event of a hard drive failure. Further, equipping the NR9581 with a DOM system has resulted in reliability and stability beyond the reach of other NVRs. Meanwhile, the NR9581 supports VIVOTEK’s fisheye network camera “Fisheye Dewarp” function, which provides multiple de-warping modes in live view and playback, ensuring the correct angle of video view and detailed information for flexible usage. This ingenious NVR is also equipped to carry out remote management with a full range of the server/client structures and thus constitutes a robust system for diverse applications.

Moreover, the NR9581 features well-built ONVIF compliance and scalable configuration, with VAST CMS empowering users to set up and manage advanced IP surveillance systems with ease. The NR9581 also supports both remote and mobile access via iViewer app, for both iOS and Android handheld devices. The NR9581 represents a great advance in the field, providing users an open, intelligent and seamless NVR to meet market demands.
