Vivotek NV9311P

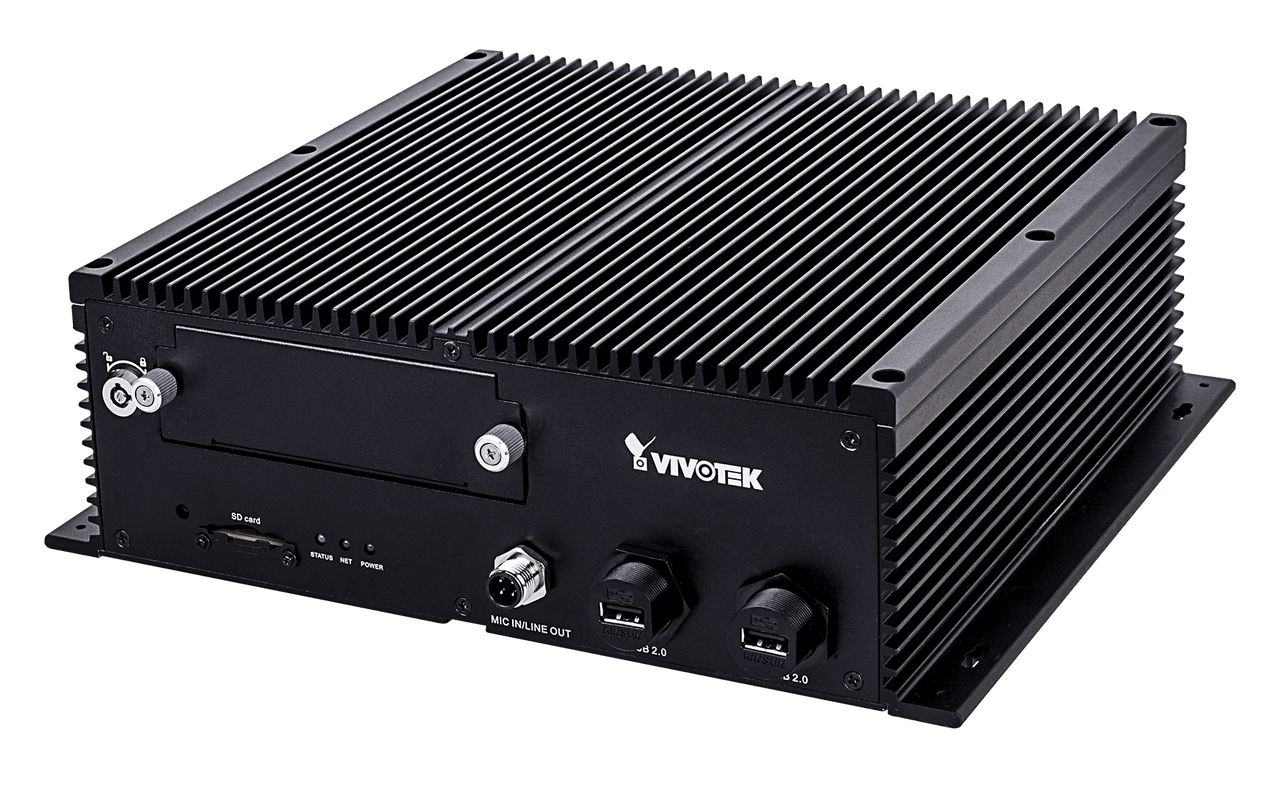

Vivotek NV9311P (RJ45) 8-CH 8-PoE Port 2MP H.265 Mobile NVR

Vivotek

Vivotek NV9311P (RJ45) 8-CH 8-PoE Port 2MP H.265 Mobile NVR

$1,425.00
Discontinued
SKU: NV9311P(RJ45)
Link to Manufacturer's Page

Contact

Features

Device

  • OS Embedded Linux
  • CPU ARM Processor
  • Flash 256 MB
  • RAM 2GB
  • Watchdog Hardware + Software
  • Power Restoration System Restart Automatically after Power Recovery

Local Display

  • LiveView Display 8 Channels, Multi-Layout Display: 1x1, 3V, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6
  • Video Output HDMI x1, VGA x1
  • Display Resolution 3840x2160, 1920x1080, 1280x720
  • Camera Position Change the viewcell position on the Live View screens
  • Stream Application Constant\Auto Adaptive Stream
  • Monitor Enhancement OSD display (NVR), OSD display (camera), camera information, remote I/O control, event notification, aspect ratio
  • Fisheye Dewarp 1O, 1P, 1R, 1O3R, 1O8R
  • PTZ Operation Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control

Video

  • Video Format H.265, H.264, MJPEG
  • Graphic Decoder Hardware decoding
  • Decoding Resolution H.265: up to 4096x4096, H.264: up to 8192x8192
  • Decoding Capability H.265/H.264: 3840x2160 @ 120 fps (4-CH), 1920x1080 @ 480 fps (16-CH)

Audio

  • Audio Format G.711, G.726
  • Audio In/Out Mic in (reserved)/Line out x 1

Record

  • Recording Time (sec.) Pre-Record: 5 (Max. 10), Post-Record: 20 (Max. 300)
  • Recording Stream Single
  • Recording Throughput 64 Mbps
  • Recording Mode Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
  • Recording Setting Recycle (unit: Day)
  • Watermark Supported

Storage & Backup

  • HDD Devices Internal x1 (2.5" HDD/SSD)
  • HDD Max. Capacity 2 TB
  • Supported HDD Western Digital WD10JUCT 1TB or WDS100T1B0A-00H9H0 1TB; Micron 5200_MTFDDAK3T8TDC 4TB; Phison PS3112-S1 1TB
  • Disk Management Create, Format and Remove Disk, HDD S.M.A.R.T.
  • SD Card SD card slot x1 (reserved)
  • Schedule Backup FTP

Playback

  • Playback Display 4 Channels, Multi-Layout Display: 1x1, 2x2, 1P+3, 1V+3
  • Playback Control Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
  • Video Search By calendar, date/time, and alarm
  • Thumbnail Explorer (Storyboard) Listing the thumbnail of recorded video (Max. 2-CH)
  • Snapshot JPEG
  • Video Clip Export EXE

Network

  • Ethernet 10/100/1000Mbps Ethernet (RJ-45) x 1
  • Video Throughput for Remote Client 96 Mbps
  • WiFi IEEE802.11a/b/g/n/ac 2T2R (optional)
  • Mobile Network LTE (optional)
  • PoE Total Max. 64W, 802.3at/af compliant PoE ports x 8 (RJ45)
  • PoE Management Supported
  • Protocols IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter

External Interface

  • USB Front: 2 (USB 2.0), Back: 1 (USB 2.0)
  • Alarm In 8
  • Alarm Out 4
  • Audio Mic in(reserved)/Line out x 1
  • Antenna Interface GPS x1, WiFi x2, LTE x2
  • RS232 1 Port (Reserved)

System

  • Camera Integration ONVIF core spec 2.2 or above (request by project)
  • GNSS GPS/GALILEO/GLONASS supported
  • G-sensor Supported
  • Event Camera: motion detection, PIR detection, tampering detection, DI/DO, disconnection; System: storage abnormal, storage full, DI/DO, GPS disconnected, GPS speed, G-sensor
  • Event Action Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS
  • User Management User level: administrator, regular user
  • Log System, recording, user, error
  • Date & Time Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time

Remote Client

  • Software AP Shepherd, VAST 2
  • Mobile/Tablet App iViewer (Android & iOS)
  • Web Browser Internet Explorer 10 (32 bit) or later/Windows

General

  • Power Input DC 12V~48V ±10%
  • Power Management Programmable delay on/off relative to ignition or other switched voltage
  • Surge Protection Supported
  • Power Consumption Max. 149 W, Without HDD/SSD and PoE: Max. 15 W (Heater off), Max. 45 W (Heater on)
  • Dimensions 284 (W) x 230 (D) x 90 (H) mm
  • Weight 4.06 kg (8.95 lb) (without HDD)
  • Operating Temperature -40°C ~ 55°C (-40°F ~ 131°F)
  • Humidity 0 ~ 95%
  • Safety Certifications CE, FCC, VCCI, C-Tick, EN50155, E-mark, EN61373, UL, CB, EN45545, EN50121-3-2/EN50121-4, MIL-STD-810G
  • Warranty 36 months

Overview

VIVOTEK’s NV9311P is a mobile NVR designed for transportation surveillance and provides 1080p 8-CH real-time live display with recording efficiency using advanced H.265 video compression technology. The 8x 802.3at/af PoE ports provide network connections and power to the network cameras. With a rugged EN50155 and MIL-STD-810G compliant design, the mobile NVR will provide durable and robust protection for all types of vehicle movement.

The NV9311P supports built-in G-sensor and GNSS module to provide information such as G-sensor events and speed events, as well as offering multiple network interfaces such as LAN, WiFi and LTE for different network connection requirements. By implementing VIVOTEK’s VAST 2 software, GPS tracking locations are instantly displayed on Google Maps. Live videos can also be displayed remotely, allowing for instant access for complete safety control.

When installed in vehicles, the mobile NVR supports system power delay on/off and low voltage protection for better system reliability. The NVR also features a wide range of power inputs, an aluminum die-case chassis, a built-in heater, surge protection, and protection from shock and vibration. With an easy-to-install design as well as simple operation and rich features, the NV9311P provides more possibilities for tomorrow's in-vehicle security applications.
