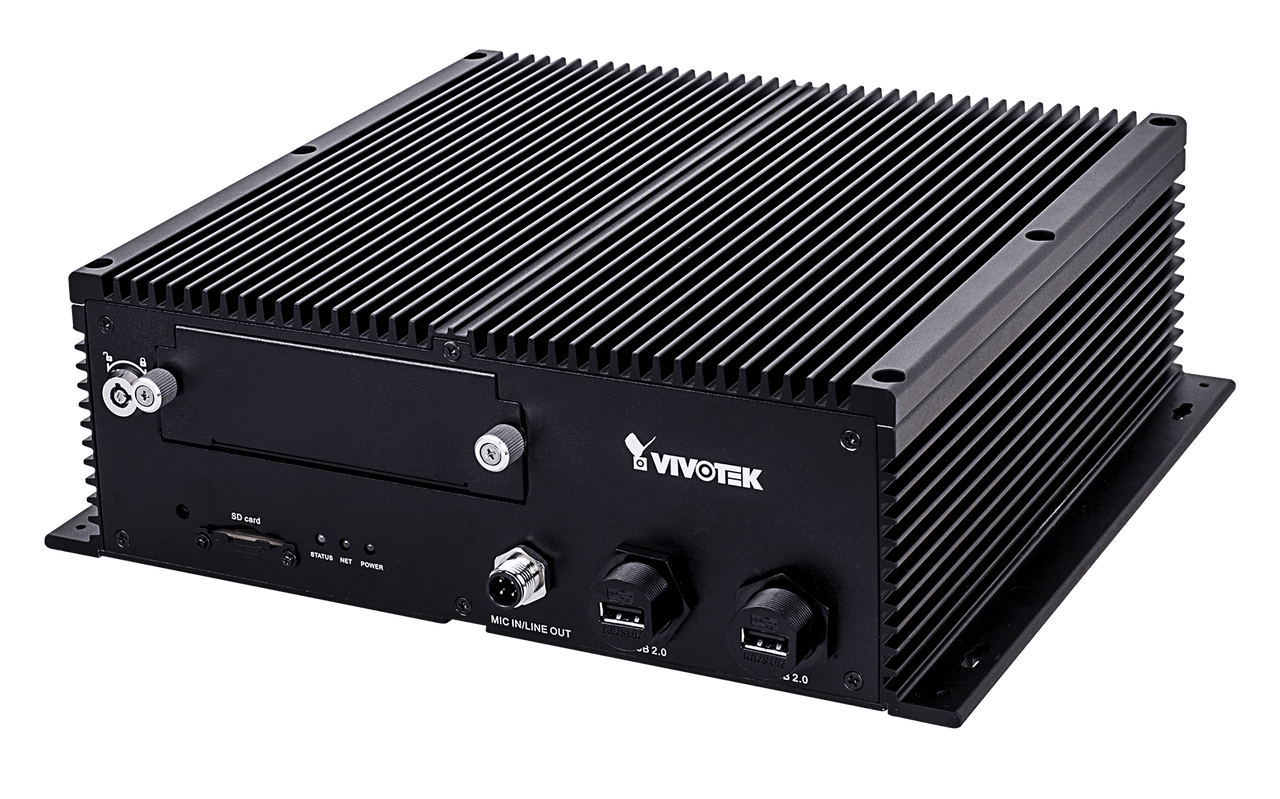

Vivotek NV9411P(RJ45) H.265 16-CH Embedded PoE Mobile NVR
Discontinued - Recommended Replacement: N/A
Choose options
Discontinued - Recommended Replacement: N/A
Discontinued - Recommended Replacement: N/A
Key Features
- H.265 1080p 16-CH Real-time Live Display
- VIVOTEK's Smart Stream II to Optimize Bandwidth Efficiency
- 4K Display for Clear and Detailed Monitoring
- LAN/Wi-Fi/LTE Multiple Network Connections
- 802.3at/af Compliant PoE port x8 with Management Efficiency
- Built-in G-sensor for Vehicle Vibration Alerts
- GPS Tracking on Google Maps with VAST 2 VMS
- Delay Power Startup/Shutdown and Low Voltage Protection
- Built-in Heater for Extreme Temperatures (-40°C ~ 55°C)
- EN50155/MIL-STD-810G certified to Ensure Reliability during Vehicle Travel
Overview
VIVOTEK’s NV9411P is a mobile NVR designed for transportation surveillance and provides 1080p 16-CH real-time live display with recording efficiency using advanced H.265 video compression technology. The 8x 802.3at/af PoE ports provide network connections and power to the network cameras. With a rugged EN50155 and MIL-STD-810G compliant design, the mobile NVR will provide durable and robust protection for all types of vehicle movement.
The NV9411P supports built-in G-sensor and GNSS module to provide information such as G-sensor events and speed events, as well as offering multiple network interfaces such as LAN, WiFi and LTE for different Network connection requirements. By implementing VIVOTEK’s VAST 2 software, GPS tracking locations are instantly displayed on Google Maps. Live videos can also be displayed remotely, allowing for instant access for complete safety control.
When installed in vehicles, the mobile NVR supports system power delay on/off and low voltage protection for better system reliability. The NVR also features a wide range of power inputs, an aluminum die-case chassis, a built-in heater, surge protection, and protection from shock and vibration. With an easy-to-install design as well as simple operation and rich features, the NV9411P provides more possibilities for tomorrow's in-vehicle security applications.
The NV9411P supports built-in G-sensor and GNSS module to provide information such as G-sensor events and speed events, as well as offering multiple network interfaces such as LAN, WiFi and LTE for different Network connection requirements. By implementing VIVOTEK’s VAST 2 software, GPS tracking locations are instantly displayed on Google Maps. Live videos can also be displayed remotely, allowing for instant access for complete safety control.
When installed in vehicles, the mobile NVR supports system power delay on/off and low voltage protection for better system reliability. The NVR also features a wide range of power inputs, an aluminum die-case chassis, a built-in heater, surge protection, and protection from shock and vibration. With an easy-to-install design as well as simple operation and rich features, the NV9411P provides more possibilities for tomorrow's in-vehicle security applications.
Highlight Features
H.265 1080P Real-time Live Display
Featuring a powerful multi-core SoC to provide 1080p (1920x1080) real-time live display so that users will not miss any information during monitoring, the NVRs also provide H.265 and VIVOTEK’s Smart Stream technology to help greatly save recording capacity than regular H.264 systems.
WiFi and LTE Connection Options
The video stream and data of the Mobile NVRs will be transmitted to the control center remotely for monitoring via WiFi 802.11a/b/g/n/ac or LTE connection.
Built-in G-sensor
Built-in G-sensor for drive safety control. Users can set the sensitivity level and the G-sensor will be triggered in the event of an accident or when extreme vibrations happen.
Fisheye Dewarp
VIVOTEK’s NVR offers both LiveView and Playback modes for one fisheye network camera simultaneously. They also provide multiple fisheye de-warp display modes, including 1O, 1P, 1R, 1O3R, 1O8R, allowing users to monitor any angle, or to enjoy precise detailed images for a total surveillance experience.
GPS Tracking on Google Maps
The embedded GNSS receiver supports GPS, GALILEO and GLONASS systems for different area applications. By remotely using VAST 2 VMS, it allows users to have both live video display and GPS tracking from Google Maps.
Rugged Design for Mobile Surveillance
Compliance with transportation standards EN50155 and MIL-STD-810G, which ensures meeting anti-vibration and anti-shock requirements, and operable in tough conditions such as extreme low temperatures, high humidity, and even surge protection.
Specifications
Technical Specifications
Device
- Model
- NV9411P(RJ45)
NV9411P(M12)
- OS
- Embedded Linux
- Watchdog
- Hardware + Software
- Power Restoration
- System Restart Automatically after Power Recovery
Local Display
- LiveView Display
- 16 Channels
Multi-Layout Display: 1x1, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6, 3V, 1M+12, 4x4
- Video Output
- HDMI x1, VGA x1
- Display Resolution
- 3840x2160, 1920x1080, 1280x720
- Camera Position
- Change the viewcell position on the Live View screens
- Stream Application
- Constant\Auto Adaptive Stream
- Monitor Enhancement
- OSD display (NVR), OSD display (camera), camera information, remote I/O control, event notification, aspect ratio
- Fisheye Dewarp
- 1O, 1P, 1R, 1O3R, 1O8R
- PTZ Operation
- Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control
Video
- Video Format
- H.265, H.264, MJPEG
- Graphic Decoder
- Hardware decoding
- Decoding Resolution
- H.265: up to 4096x4096
H.264: up to 8192x8192
- Decoding Capability
- H.265/H.264:
3840x2160 @ 120 fps (4-CH)
1920x1080 @ 480 fps (16-CH)
Audio
- Audio Format
- G.711, G.726
- Audio In/Out
- Mic in (reserved)/Line out x 1
Record
- Recording Time (sec.)
- Pre-Record: 5 (Max. 10)
Post-Record: 20 (Max. 300)
- Recording Stream
- Single
- Recording Throughput
- 64 Mbps
- Recording Mode
- Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
- Recording Setting
- Recycle (unit: Day)
- Watermark
- Supported
Storage & Backup
- HDD Devices
- Internal x1 (2.5" HDD/SSD)
*HDD is purchased by separately.
- HDD Max. Capacity
- *Please refer to the HDD supported list on the VIVOTEK website.
- Disk Management
- Create, Format and Remove Disk
HDD S.M.A.R.T.
- SD Card
- SD card slot x1 (reserved)
- Schedule Backup
- FTP
Playback
- Playback Display
- 4 Channels
Multi-Layout Display: 1x1, 2x2, 1P+3, 1V+3
- Playback Control
- Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
- Video Search
- By calendar, date/time, and alarm
- Thumbnail Explorer (Storyboard)
- Listing the thumbnail of recorded video (Max. 2-CH)
- Snapshot
- JPEG
- Video Clip Export
- EXE
Network
- Ethernet
- NV9411P(RJ45): 10/100/1000Mbps Ethernet (RJ-45) x 1
NV9411P(M12): 10/100/1000Mbps Ethernet (M12) x 1
- Video Throughput for Remote Client
- 96 Mbps
- WiFi
- IEEE802.11a/b/g/n/ac 2T2R (optional)
- Mobile Network
- LTE (optional)
- PoE
- Total Max. 64W
NV9411P(RJ45): 802.3at/af compliant PoE ports x 8 (RJ45)
NV9411P(M12): 802.3at/af compliant PoE ports x 8 (M12)
* DO NOT suggest connecting any non-PD device with this Mobile NVR PoE port in order to avoid potential risk.
- PoE Management
- Supported
- Protocols
- IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
External Interface
- USB
- Front: 2 (USB 2.0)
Back: 1 (USB 2.0)
- Alarm In
- 8
- Alarm Out
- 4
- Audio
- Mic in(reserved)/Line out x 1
- Antenna Interface
- GPS x1, WiFi x2, LTE x2
- RS232
- 1 Port (reserved)
System
- Camera Integration
- ONVIF core spec 2.2 or above (request by project)
- GNSS
- GPS/GALILEO/GLONASS supported
- G-sensor
- Supported
- Event
- Camera: motion detection, PIR detection, tampering detection, DI/DO, disconnection
System: storage abnormal, storage full, DI/DO, GPS disconnected, GPS speed, G-sensor
- Event Action
- Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS
- User Management
- User level: administrator, regular user
- Log
- System, recording, user, error
- Date & Time
- Time zone, manual, automatic sync NTP, daylight saving time
Remote Client
- Software AP
- Shepherd, VAST 2
- Mobile/Tablet App
- iViewer (Android & iOS)
- Web Browser
- Internet Explorer 10 (32 bit) or later/Windows
General
- Power Input
- DC 12V~48V ±10%
- Power Management
- Programmable delay on/off relative to ignition or other switched voltage
- Surge Protection
- Supported
- Power Consumption
- Max. 149 W
Without HDD/SSD and PoE: Max. 15 W (Heater off), Max. 60 W (Heater on)
- Dimensions
- 284 (W) x 230 (D) x 90 (H) mm
- Weight
- 4.06 kg (without HDD)
- Operating Temperature
- -40°C ~ 55°C (-40°F ~ 131°F)
Maximum (intermittent): 70 °C (158 °F)
- Humidity
- 0 ~ 95%
- Safety Certifications
- CE, FCC, VCCI, C-Tick, EN50155, E-mark, EN61373, UL, CB, EN45545, EN50121-3-2/EN50121-4, MIL-STD-810G
- Warranty
- 36 months
