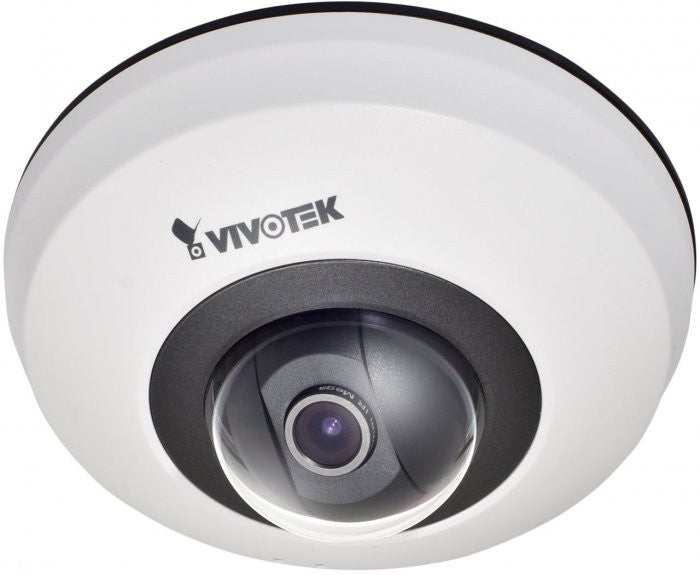

Vivotek PD8136 1MP Pan/Tilt PoE Dome Network Camera
PD8136 Front View
PD8136 Rear View
PD8136 Whats included
Banner PD8136
Network Camera Store is an Authorized Vivotek Reseller
PD8136 H.264 Feature
PD8136 Built in MicroSD/SDHC card slot Feature
Vivotek PD8136 1MP Pan/Tilt PoE Dome Network Camera


Vivotek PD8136 1MP Pan/Tilt PoE Dome Network Camera

Sale price$335.00
SKU: PD8136

Vivotek PD8136 Features

  • Max Resolution: 1280x800
  • Image Sensor: 1/4" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.47 Lux, 50 IRE
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed-focal
  • Focal Length: f = 3.6mm
  • Zoom: 16x digital zoom (4x on IE plug-in, 4x built-in)
  • Field of View: 56° (horizontal), 41° (vertical), 71° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: 30 fps at 1280x800 in all Compression Styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, BLC (Backlight compensation), Supports privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Audio input
  • Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection: Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to10 clients
  • On-board Storage: Yes, MicroSD/SDHC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 120 mm x 55 mm
  • Weight: 180 g
  • Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
  • Operating Humidity: 90% RH
  • Power: IEEE 802.3af PoE Class 2, Max. 6.24 W
  • Warranty: 2 Years
  • Whats Included: PD8136 Network Camera, Ceiling Mount Brackets, Screws, Quick Installation Guide, Alignment Sticker, RJ45 Coupler, Software CD, Warranty Card
Vivotek PD8136

VIVOTEK PD8136 is equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps. Users need look no further for an all-in-one camera capable of capturing high quality, high resolution video with pan & tilt control. With a stylish design and small footprint to fit most installation environments, it is the best choice for indoor surveillance applications such as retail stores, offices, or homes. With flexible 360-degree pan and 80-degree tilt, PD8136 gives users comprehensive control over a monitored site. The PD8136 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. In addition, PD8136 is integrated with Power over Ethernet functionality, making installation easier and more cost-efficient. Together with the bundled, multi-lingual 32-channel recording software ST7501, users can set up an easy-to-use IP surveillance system with ease.
