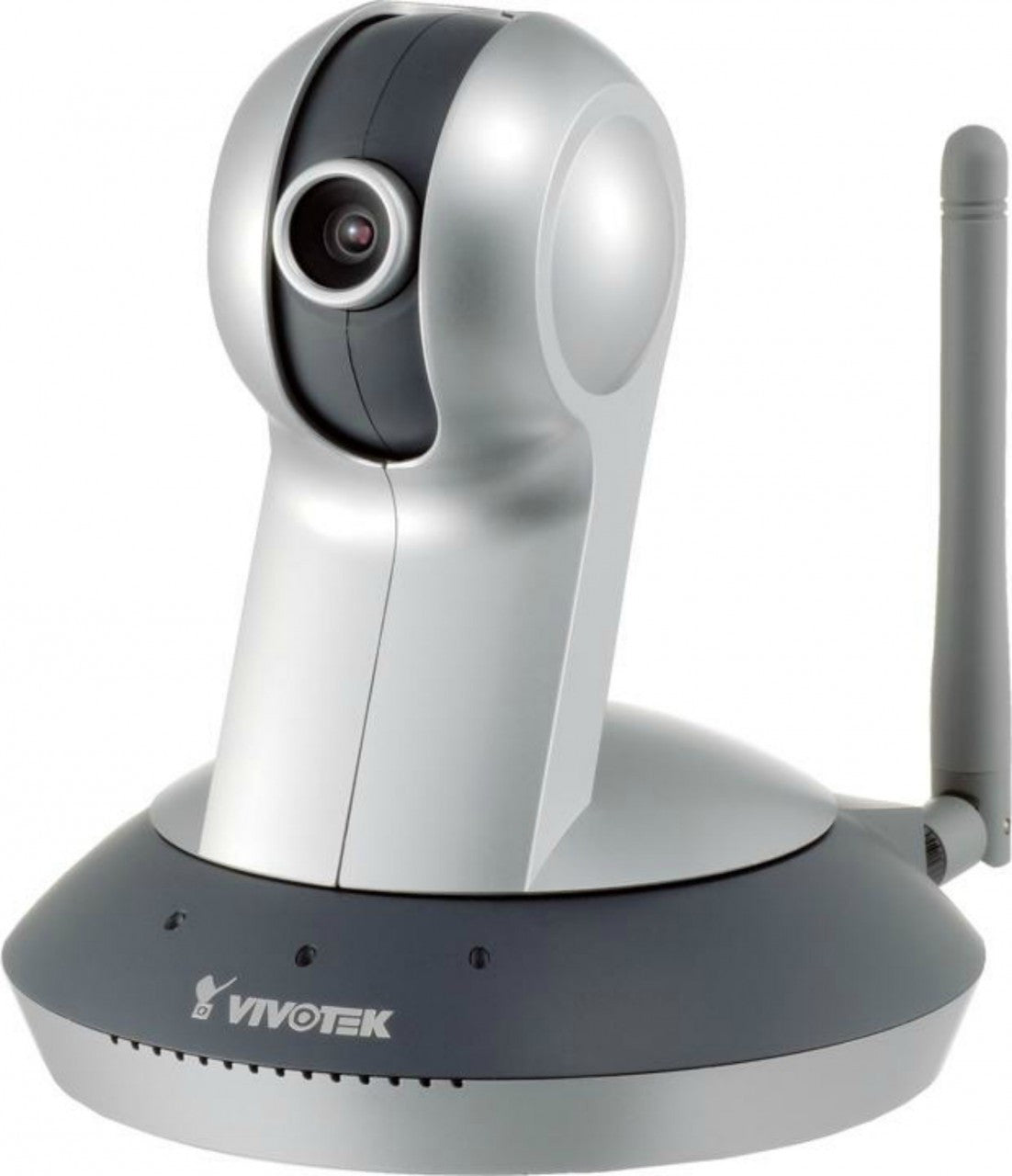

Vivotek PT8133W 1 Megapixel Pan/Tilt Network Camera

Vivotek PT8133W Features

Discontinued & Replaced by the PZ8111W

• Max Resolution: 1280x800
• Image Sensor: 1/4" Progressive CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 0.3 Lux / F1.8, 50 IRE ( Color )
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Fixed
• Focal Length: f = 3.6
• Field of View: 58.39° (horizontal) 35.58° (vertical) 69.34° (diagonal)
• Compression Styles: H.264, MJPEG & MPEG-4
• Frame Rate: Up to 30 fps in all Compression Styles
• Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, BLC (Backlight compensation), Supports privacy masks, Scheduled profile settings
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Audio input / Audio output
• Alarm/Event Management: Triple-window video motion detection, manual trigger, periodical trigger, system boot, recording notification, Event notification using HTTP, SMTP, FTP, File upload via HTTP, SMTP, FTP and NAS server
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: No
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: 110 mm x 120 mm
• Weight: 293 g
• Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
• Operating Humidity: 20% ~ 80% RH
• Power: 12V DC, 802.3af Power-over-Ethernet (Class 2), Max. 5.52 W
• Warranty: 2 Years
• Whats Included: PT8133W Network Camera, Antenna, Camera Mount Kit & Pads, Screws, Quick Installation Guide, Power Adapter, Software CD, Warranty Card

Vivotek PT8133W Overview

VIVOTEK PT8133W is equipped with a 1-megapixel sensor enabling viewing resolution of 1280x800 at 30 fps. Users need look no further for an all-in-one camera capable of capturing high quality, high resolution video. The camera is designed for indoor surveillance applications such as retail stores, offices, or banks. With flexible 350-degree pan and 125-degree tilt, PT8133W gives users more comprehensive control over a monitored site. The PT8133W supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications. The streams can also be individually configured to meet different constraints, thereby further reducing bandwidth and storage requirements. Users can thus receive multiple streams simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms. In addition, PT8133W boasts 802.11b/g/n co-megapixelatible wireless connection, making installation easier and more cost-efficient. The WPS function of PT8133W makes wireless configuration easy and straightforward. Together with the free, multi-lingual 32-channel recording software ST7501, users can set up an easy-to-use IP surveillance system with ease.

Replaces the PT7135 & PT7137
