Vivotek PZ8111
Vivotek PZ8111 Front View
Vivotek PZ8111 Rear View
Vivotek PZ8111 Banner
Network Camera Store is an Authorized Vivotek Reseller
Vivotek PZ8111 H.264 compression

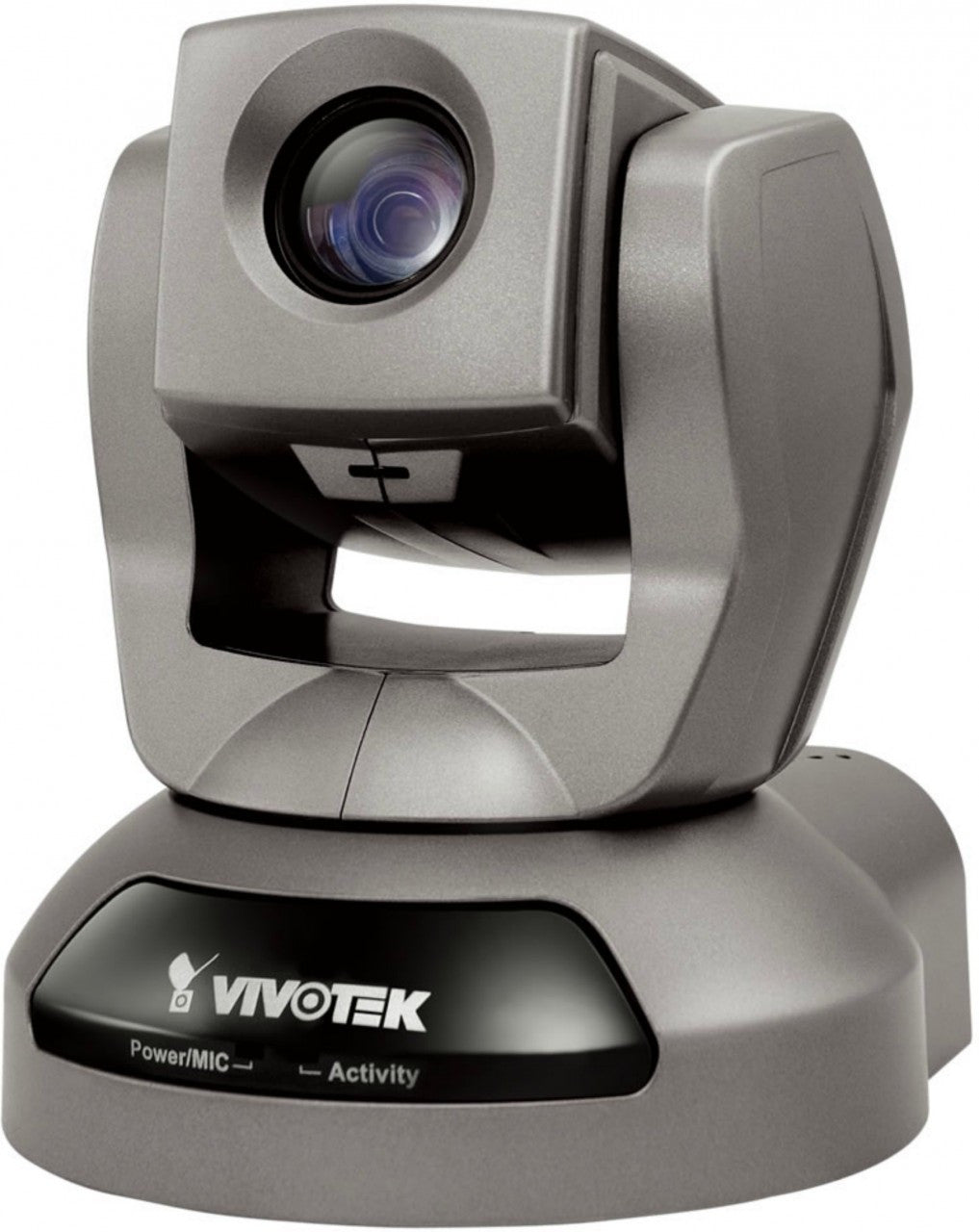

Vivotek PZ8111 10X Pan/Tilt/Zoom PoE Camera


Vivotek PZ8111 10X Pan/Tilt/Zoom PoE Camera

Sale price$545.00
SKU: PZ8111


Vivotek PZ8111 Features

  • Max Resolution: D1 Resolution
  • Image Sensor: 1/4" CCD
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 2.76 Lux @ F1.8 (color) 0.05 Lux @ F1.8 (low light mode)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: 10x optical zoom lens
  • Focal Length: 4.2 ~ 42 mm, F 1.8 (wide) F 2.9 (tele)
  • Zoom: 10x optical, 10x digital
  • Pan Range: 300° (-150° ~ +150°)
  • Tilt Range: 135° (-45° ~ +90°)
  • Iris: Auto
  • Focus: Auto
  • Field of View: 4.15° ~ 48.93° (horizontal) 2.77° ~ 33.75° (vertical)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30/25 fps at 720x480/720x576 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC, AWB, AES, Supports privacy masks, BLC (Backlight compensation)
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: External microphone input, Audio output, External/Internal microphone switch, Supports two-way audio, Supports audio mute
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files
  • ONVIF: No
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: No
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 105mm x 124 mm
  • Weight: 391 g
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Operating Humidity: 20% ~ 80% RH
  • Power: 12V DC, Power consumption: Max. 11.16 W, 802.3af Power-over-Ethernet (Class 3)
  • Warranty: 2 Years
  • What's Included: PZ8111, ceiling mount brackets, screws, quick installation guide, power adapter, software CD, warranty card

Vivotek PZ8111 Overview

The Vivotek PZ8111 10x Pan Tilt Zoom camera is an exceptional value for applications requiring close up and distance viewing with clear-cut images. It is designed for indoor use and excels in retail, bank, or office spaces by providing wide-angle viewing in a small package. The pan/tilt/zoom feature allows users to focus in detail on small areas with the 10x optical/digital zoom lens yet also see the big picture with motorized 300-degree pan and 135-degree tilt capabilities. These features allow for impressive views with tight and responsive control. The PZ8111 has two-way audio capabilities and can be powered via PoE or 12V DC plug. It also supports the industry standard H.264 compression technology so it uses smaller files sizes and saves precious network bandwidth space. It is also MPEG-4 and MJPEG compatible. The software allows for up to 10 live viewers and with the 3GPP feature the cameras can be monitored from anywhere via a compatible mobile device. The PZ811 comes with ceiling mount brackets and screws, power adaptors, A/V cable, quick start installation guide, and management software CD. If you are looking for the same functionality with wireless capability, please look at the PZ8111W.
