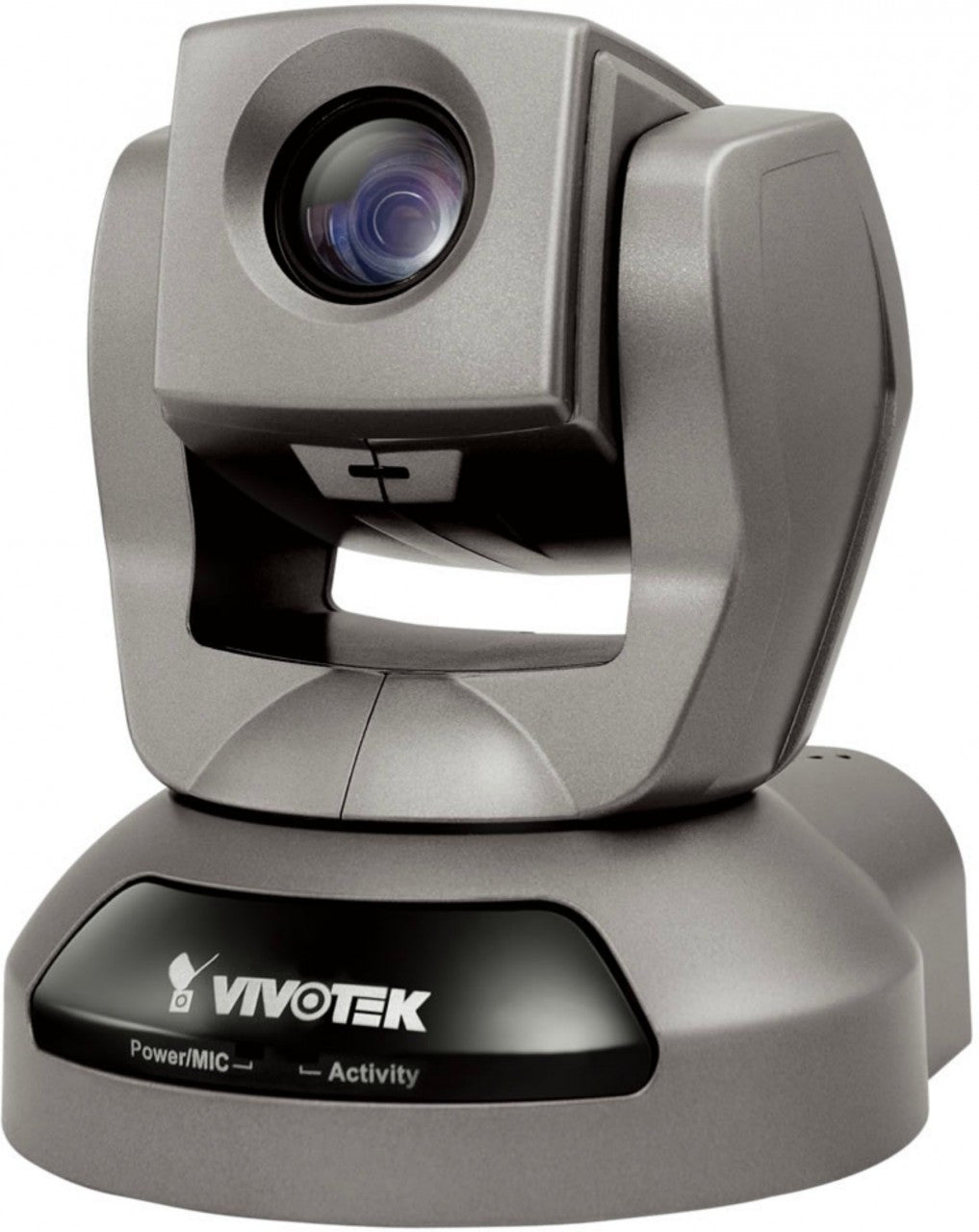

Vivotek PZ8111W  Front View
Vivotek PZ8111W  Rear View
Vivotek PZ8111W dimensions
Vivotek PZ8111W Banner
Network Camera Store is an Authorized Vivotek Reseller
Vivotek PZ8111W H.264 compression
Vivotek PZ8111W 10X Pan/Tilt/Zoom Camera


Vivotek PZ8111W 10X Pan/Tilt/Zoom Camera

Sale price$575.00
SKU: PZ8111W


Vivotek PZ8111W Features

  • Max Resolution: D1 Resolution
  • Image Sensor: 1/4" CCD
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 2.76 Lux @ F1.8 (color) 0.05 Lux @ F1.8 (low light mode)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: N/A
  • Focal Length: 4.2 ~ 42 mm, F 1.8 (wide) F 2.9 (tele)
  • Zoom: 10x optical, 10x digital
  • Pan Range: 300° (-150° ~ +150°)
  • Tilt Range: 135° (-45° ~ +90°)
  • Iris: Auto
  • Focus: Auto
  • Field of View: 4.15° ~ 48.93° (horizontal) 2.77° ~ 33.75° (vertical)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30/25 fps at 720x480/720x576 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Supports privacy masks, BLC (Backlight compensation)
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: External microphone input, Audio output, External/Internal microphone switch, Supports two-way audio, Supports audio mute
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files
  • ONVIF: No
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, Wireless: WEP, WPA-PSK, WPA2
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating:
  • Dimensions: 105mm x 124 mm
  • Weight: 408 g
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Operating Humidity: 20% ~ 80% RH
  • Power: 12V DC, power consumption: Max. 12 W
  • Warranty: 2 Years

Vivotek PZ8111W Overview

The high performance Vivotek PZ8111W network camera is well equipped for indoor installations. The integrated 10x mechanical zoom and pan/tilt technology are designed to enhance detail and image range, making it exceptionally beneficial for use in banks or retail outlets. The Vivotek PZ8111W multiple streaming network camera supports a fruitful 300 degree pan and 135 degree tilt. This means that security personnel can expect extremely comprehensive monitoring control. Following the industry standard H.264, the camera significantly reduces file sizes suitable for businesses practicing bandwidth conservation and hoping to streamline storage capacities. Furthermore, the Vivotek PZ8111W is engineered for 802.11 b/g/n wireless compatibility, resulting in much more effective, cost efficient and user-friendly installation.
