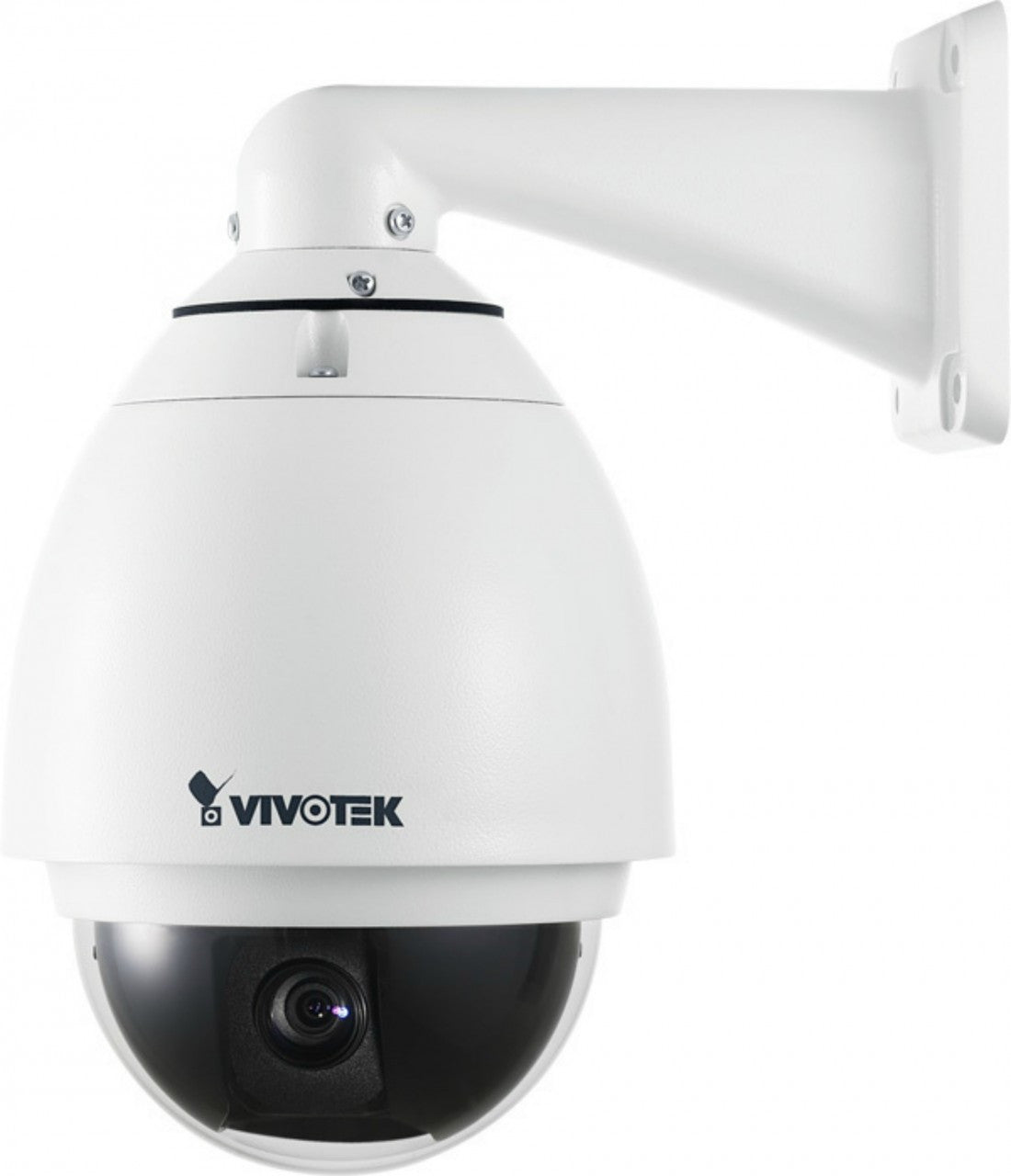

Vivotek SD8311E 18x Zoom Outdoor Day/Night Speed Dome Network Camera
Network Camera Store is an Authorized Vivotek Reseller
Vivotek SD8311E WDR enhancement
Vivotek SD8311E H.264 compression
Vivotek SD8311E IP66-rated housing
Vivotek SD8311E SD card slot
Vivotek SD8311E Removable IR-cut filter
Vivotek SD8311E 18x Zoom Outdoor Day/Night Speed Dome Network Camera

Vivotek

Vivotek SD8311E 18x Zoom Outdoor Day/Night Speed Dome Network Camera

Sale price$0.00
Discontinued
SKU: SD8311E

Discontinued; replaced by the SD8314E

Vivotek SD8311E Features

  • Max Resolution: 704 x 480 (D1 Resolution)
  • Image Sensor: 1/4" SONY EXview HAD CCD
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.01 Lux @ F1.4 (color) 0.001 Lux @ F1.4 (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-focal, F 1.4 (wide) F 3.0 (tele)
  • Focal Length: f=4.1 ~ 73.8 mm
  • Zoom: 18x optical zoom
  • Pan Range: 360° continuous rotation
  • Tilt Range: 0° ~ 90° flip
  • Iris: Auto
  • Focus: Auto
  • Field of View: 2.8° ~ 48° (horizontal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 60/50 fps at 720x480 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation), WDR Pro, Auto pan mode, Auto patrol mode
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: External microphone input, Audio output, Supports two-way audio, Supports audio mute
  • Alarm/Event Management: Triple-window video motion detection, 3 D/I & 2 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Audio detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes, SD/SDHC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing
  • Dimensions: 200mm x 270 mm
  • Weight: 3400 g
  • Operating Temperature: -40°C ~ 55°C (AC 24V), -10°C ~ 55°C (PoE Plus)
  • Operating Humidity: 90% RH
  • Power: 802.3at Power-over-Ethernet Plus, 24V AC, Power consumption: Max. 60 W
  • Warranty: 2 Years
  • What's Included: SD8311E, black cover/dome cover, metal ring, screws, wall mount bracket, quick installation guide, alignment sticker, software CD, warranty card

Vivotek SD8311E Overview

VIVOTEK SD8311E/21E are high performance day/night speed dome network cameras suitable for professional surveillance applications. The IP66-rated housing protects the camera body against rain and dust and ensures operation under extreme weather conditions. The SD8311E/21E are especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways, parking lots, and shopping malls, where high-level reliability and precision are always required. The SD8311E/21E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 60fps @ D1. Boasting WDR PRO technology, the SD8311E/21E can also cope with challenging lighting conditions and generate image quality similar to the capabilities of a human eye. With sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 90-degree tilt. Users can easily control the lens position via a mouse or a joystick to track the object of interest in and set up to 128 preset positions for patrolling. As with all VIVOTEK true day/night cameras, the SD8311E/21E features a removable IR-cut filter, maintaining clear images 24 hours a day. The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection. With other advanced features such as audio detection, 802.3at compliant PoE Plus, and 60fps high quality video, the SD8311E/21E is the best choice for the most demanding outdoor surveillance applications.
