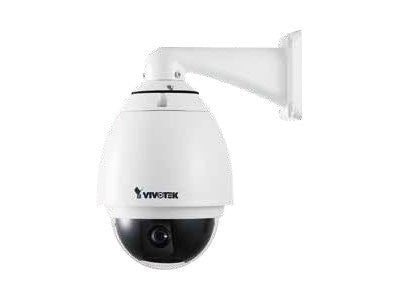

Vivotek SD8313E 36x Zoom Indoor/Outdoor & Day/Night Speed Dome Network Camera

Vivotek

Vivotek SD8313E 36x Zoom Indoor/Outdoor & Day/Night Speed Dome Network Camera

Sale price$2,010.00
Discontinued
SKU: SD8313E

Contact

Vivotek SD8313E Features

  • Max Resolution: D1 Resolution, 704 x 480
  • Image Sensor: 1/4" SONY EXview HAD CCD
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.01 Lux @ F1.6 (color), 0.001 Lux @ F1.6 (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type:
  • Focal Length: f=3.4 ~ 122.4 mm, F 1.6 (wide), F 4.5 (tele)
  • Zoom: 36x optical zoom
  • Pan Range: 360° continuous rotation
  • Tilt Range: 0° ~ 90° flip
  • Number of Presets: 128
  • Modes: Auto pan & auto patrol
  • Iris: Auto
  • Focus: Auto
  • Field of View: 1.7° ~ 57.8° (horizontal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 60/50 fps at 720x480 and up to 30/25 fps in WDR mode in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC, AWB, AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation), EIS (Electronic Image Stabilizer), WDR Pro
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: External microphone input, Audio output, Supports two-way audio, Supports audio mute
  • Alarm/Event Management: Triple-window video motion detection, 3 D/I & 2 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Audio detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes, SD/SDHC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing
  • Dimensions: 200mm x 270 mm
  • Weight: 3400 g
  • Operating Temperature: -40 ~ 55 (AC 24V), -10 ~ 55 (PoE Plus)
  • Operating Humidity: 90% RH
  • Power: 802.3at Power-over-Ethernet Plus, 24V AC, Power consumption: Max. 60 W
  • Warranty: 2 Years
  • What's Included: SD8313E, black cover/dome cover, metal ring, screws, wall mount bracket, quick installation guide, alignment sticker, software CD, warranty card
Vivotek SD8313E Overview

The SD8313E is a high performance day/night speed dome network camera designed with professional surveillance applications in mind. Vivotek's SD83xx series of network cameras are especially well suited for monitoring wide open indoor/outdoor spaces such as airports, highways, parking lots, and shopping malls, where high-level reliability and precision are demanded to monitor crowded and active environments. The SD8313E offers exceptional video quality with 36x optical zoom and resolution up to 60fps at 720x480. It also supports high-performance H.264/MPEG-4/MJPEG compression technology. As with all of Vivotek's true day/night cameras, the SD8313E features a removable IR-cut filter to maintain clear images 24 hours a day. Boasting WDR Pro technology and backlight compensation, the SD8313E cuts through challenging lighting conditions to produce stellar image quality. It also has a built-in Electronic Image Stabilizer to give its video picture an edge in clarity. With Vivotek's sophisticated pan/tilt mechanism, the camera view provides quick and precise movement with continuous 360-degree pan and 90-degree tilt. The lens can be easily positioned via a mouse or a joystick to track the object of interest or to set up to 128 preset positions for directed patrolling. It is also programmable for auto pan or auto patrol modes. Vivotek maximizes the flexibilty of their SD83xx series by offering two different length pendant mounts and a recessed bracket mount beyond the included wall mount. The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case the network disconnects and can store snapshots or video clips. To protect against the elements, the IP66-rated housing protects the camera body against rain and dust to guarantee workability in even extreme weather conditions. With other advanced features such as audio detection, two way audio, 802.3at compliant PoE Plus, and 3D privacy masks, the SD8313E is an exceptional camera for your challenging indoor or outdoor applications.
