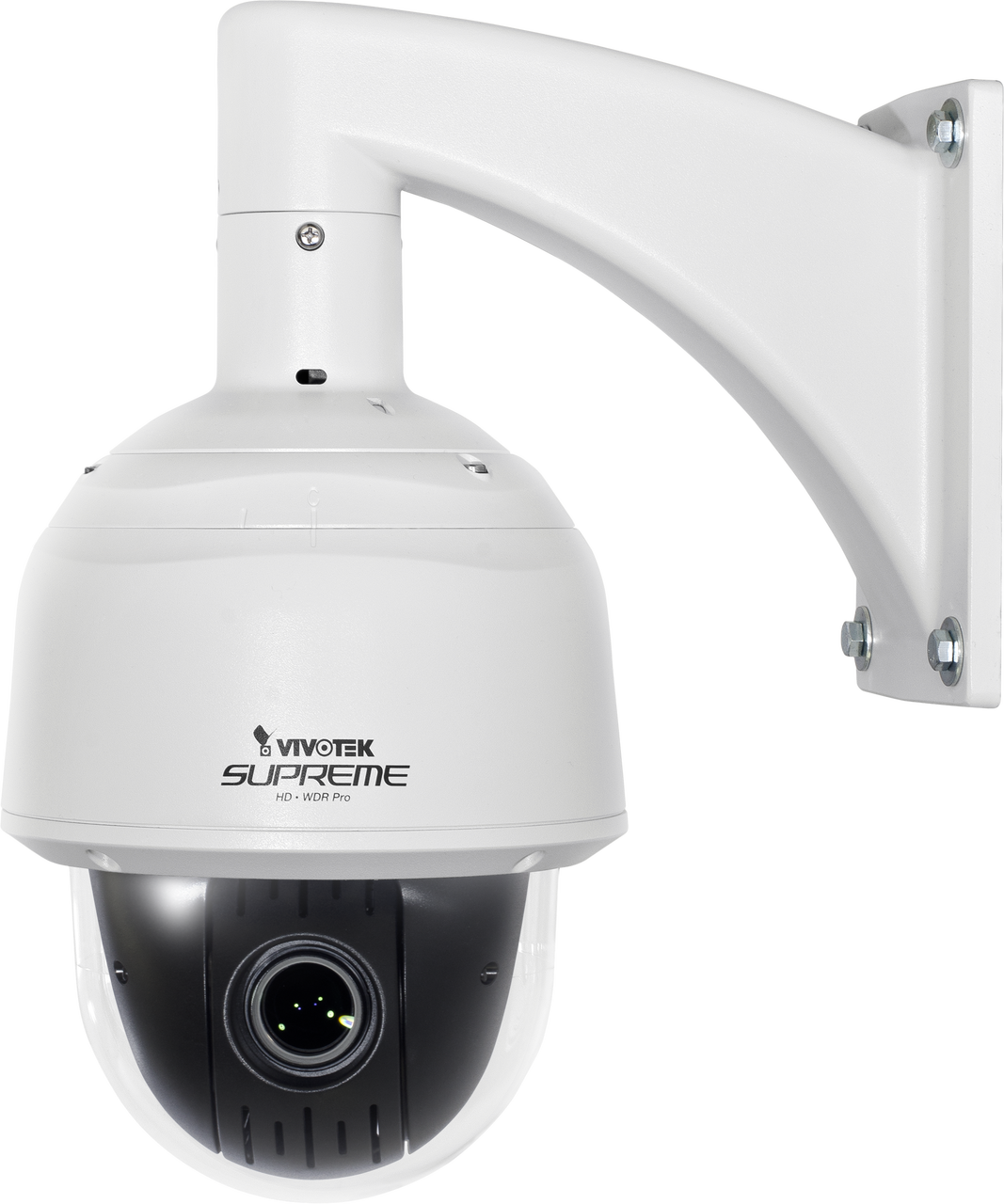

Vivotek SD8314E
Vivotek SD8314E mounting option
Vivotek SD8314E LEDs
Vivotek SD8314E connectors
Vivotek SD8314E D1 18x Zoom Speed Dome Network Camera


Vivotek SD8314E D1 18x Zoom Speed Dome Network Camera

Sale price$1,425.00
SKU: SD8314E

Discontinued, replaced by the SD8333-E.

Vivotek SD8314E Features

  • Resolution: 720x480 (D1)
  • Image Sensor: 1/4" Progressive CCD
  • Sensor Size: 1/4"
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.01 Lux @ F1.4, 50IRE (Color); 0.001 Lux @ F1.4, 50 IRE (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Auto Focus
  • Focal Length: f = 4.1 ~ 73.8 mm, F1.4 ~ F3.0 aperture
  • Zoom: 18x optical zoom, 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Pan Range: 360° endless
  • Tilt Range: 220° (-110° ~ +110°)
  • Number of Presets: 256
  • Modes: Auto pan & auto patrol
  • Iris: DC-iris
  • Focus: Auto
  • Field of View: 3° ~ 48° (horizontal); 2° ~ 37° (vertical); 4° ~ 58° (diagonal)
  • Compression Styles: H.264, MJPEG, MPEG-4
  • Frame Rate: 30 fps @ 720x480
  • Image Settings: WDR Pro; Adjustable resolution, quality and bitrate; Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, sharpness, white balance, exposure control, gain, backlight compensation, Scheduled profile settings
  • Privacy Mask:, Yes, up to 24
  • Built-in Microphone: No
  • Audio Capabilities: Two-way Audio (full duplex, external microphone input, external line output)
  • Alarm/Event Management: 3-window Video motion detection, Auto-tracking on moving object, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, event notification using digital output, HTTP, SMTP, FTP and NAS server, file upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10
  • On-board Storage: SD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66- and NEMA 4X-rated housing
  • Dimensions: Ø: 205 mm x 321 mm
  • Weight: Net: 3,660 g (8.07 lbs)
  • Operating Temperature: -5°C ~ 55°C (PoE Plus); -40°C ~ 55°C (AC 24V); -40°C ~ 55°C (High Power PoE)
  • Operating Humidity: N/A
  • Power: PoE Plus (IEEE 802.3at compliant); High Power PoE; AC 24V
  • Warranty: 3 years
  • What's Included: Camera, Wall mount bracket, screws, waterproof connectors, terminal blocks, Ethernet cable, quick installation guide, warranty card, alignment sticker, T25 star driver, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software), desiccant bag, ground wire
Vivotek SD8314E Overview

VIVOTEK SD8314E is part of the SUPREME series product line offering D1 resolution with superb image quality. Adopting a 18x optical zoom lens, the SD8314E is able to capture details at top-notch quality. The IP66- and NEMA 4X-rated housing protects the camera body against rain, dust, and corrosion within a wide temperature range of between -40°C to 55°C. This feature ensures operation under extreme weather conditions and hazardous environments. It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required.

The SD8314E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 30 fps @ D1. Boasting WDR Pro Technology, the SD8314E can also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye. With a sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track the object of interest and set up to 256 preset positions for patrolling. With the built-in auto tracking feature, the SD8314E provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity.

As with all VIVOTEK true day/night cameras, the SD8314E features a removable IR-cut filter, maintaining clear images 24 hours a day. With audio detection, by recognizing increases or decreases in sound volume, an additional layer of intrusion detection is ensured. With other advanced features such as SD/SDHC/SDXC card slot, 802.3at compliant PoE Plus and 30 fps high quality video, the SD8314E is the best choice for the most demanding outdoor surveillance applications.
