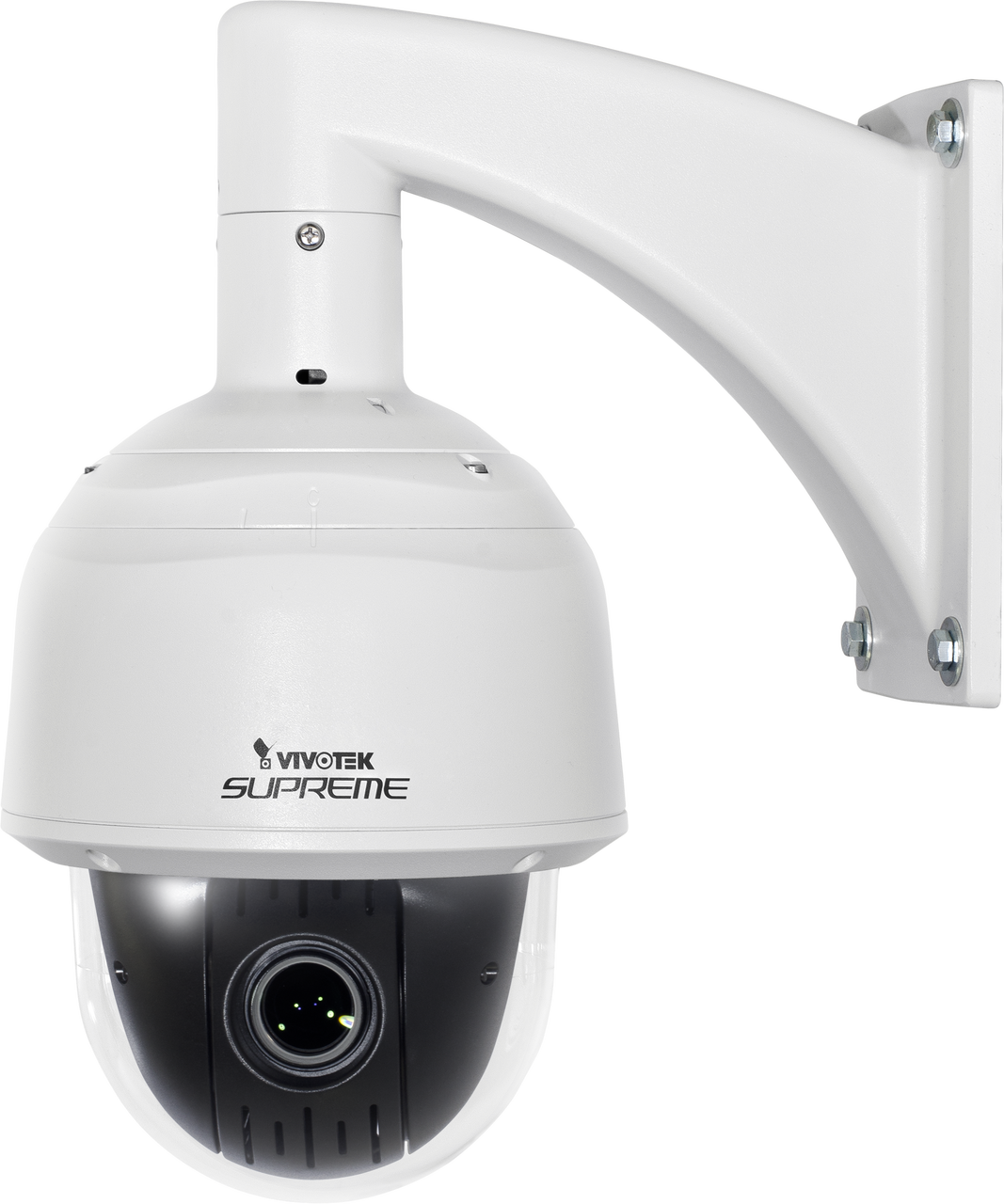

Vivotek SD8333-EM
Vivotek SD8333-EM 720p 30x Zoom Speed Dome Network Camera with Built-in electrical dehumidifier

Vivotek

Vivotek SD8333-EM 720p 30x Zoom Speed Dome Network Camera with Built-in electrical dehumidifier

$2,325.00
Discontinued
SKU: SD8333-EM

Discontinued - Recommended Replacement: N/A

Link to Manufacturer's Page

Contact

Vivotek SD8333-EM Features

  • Max Resolution: 1280x720
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.15 Lux @ F1.6 (Color); 0.0048 Lux @ F1.6 (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: 30x Optical Zoom
  • Focal Length: f = 4.3~129 mm (30x zoom) / F1.6 ~ F4.7
  • Zoom: 30x optical zoom, 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Pan Range: 360° endless
  • Tilt Range: 220° (-110° ~ +110°)
  • Number of Presets: 256 preset locations, 40 presets per tour
  • Modes: Auto pan & Auto patrol
  • Iris: DC-iris
  • Focus: Auto
  • Field of View: 2.1° ~ 57.8° (Horizontal), 1.2° ~ 34.5° (Vertical), 2.4° ~ 67.3° (Diagonal)
  • Compression Styles: H.264, MJPEG, & MPEG-4
  • Frame Rate: H.264: 60 fps @ 1280x720; MPEG-4: 60 fps @ 1280x720; MJPEG: 60 fps @ 1280x720 (Up to 30 fps in WDR mode)
  • WDR Technology: WDR Pro
  • Image Settings: Adjustable resolution, quality and bitrate, Zoom enhancement for better image quality under limited bandwidth, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, Scheduled profile settings, Defog
  • Privacy Mask: Yes, up to 24
  • Built-in Microphone: No
  • Audio Capabilities: Supports two-way audio with audio input/output (full duplex)
  • Alarm/Event Management: Triple-window video motion detection, Auto-tracking on moving object, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, built-in SD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 weather-proof & NEMA 4X
  • Dimensions: Ø: 205 mm x 321 mm
  • Weight: 3974 g (8.76 lb)
  • Operating Temperature: -5°C ~ 55°C (PoE Plus), -40°C ~ 55°C (AC 24V), -40°C ~ 55°C (High Power PoE)
  • Operating Humidity: N/A
  • Power/Consumption: PoE plus (IEEE 802.3at compliant), High Power PoE, AC 24V / PoE plus: Max. 19W, AC 24V: Max. 48W (heater on), Max. 19W (heater off), High Power PoE: Max. 48W (heater on), Max. 19W (heater off)
  • Warranty: 3 years
  • What's Included: Wall mount bracket, screws, waterproof connectors, terminal blocks, quick installation guide, warranty card, alignment sticker, ground wire, T25 stardriver, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software), desiccant bag
  • Notes: Built-in electrical dehumidifier device

Vivotek SD8333-EM Overview

VIVOTEK SD8333-EM is part of the SUPREME series product line offering 720p HD resolution with superb image quality. Adopting a 30x optical zoom lens, the SD8333-EM is able to capture details at top-notch quality. The IP66- and NEMA 4X-rated housing protects the camera body against rain, dust and corrosion within a wide temperature range between -40°C to 55°C. This feature ensures operation under extreme weather conditions and hazardous environments. It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required. The SD8333-EM supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 60 fps @ 720p. Boasting WDR Pro technology, the SD8333-EM can also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye. With a sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track the object of interest and set up to 256 preset positions. With the built-in auto tracking feature, the SD8333-EM provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity. The SD8333-EM has a built-in electrical dehumidifier device too keep the unit comfortable in the most humid operating conditions.
