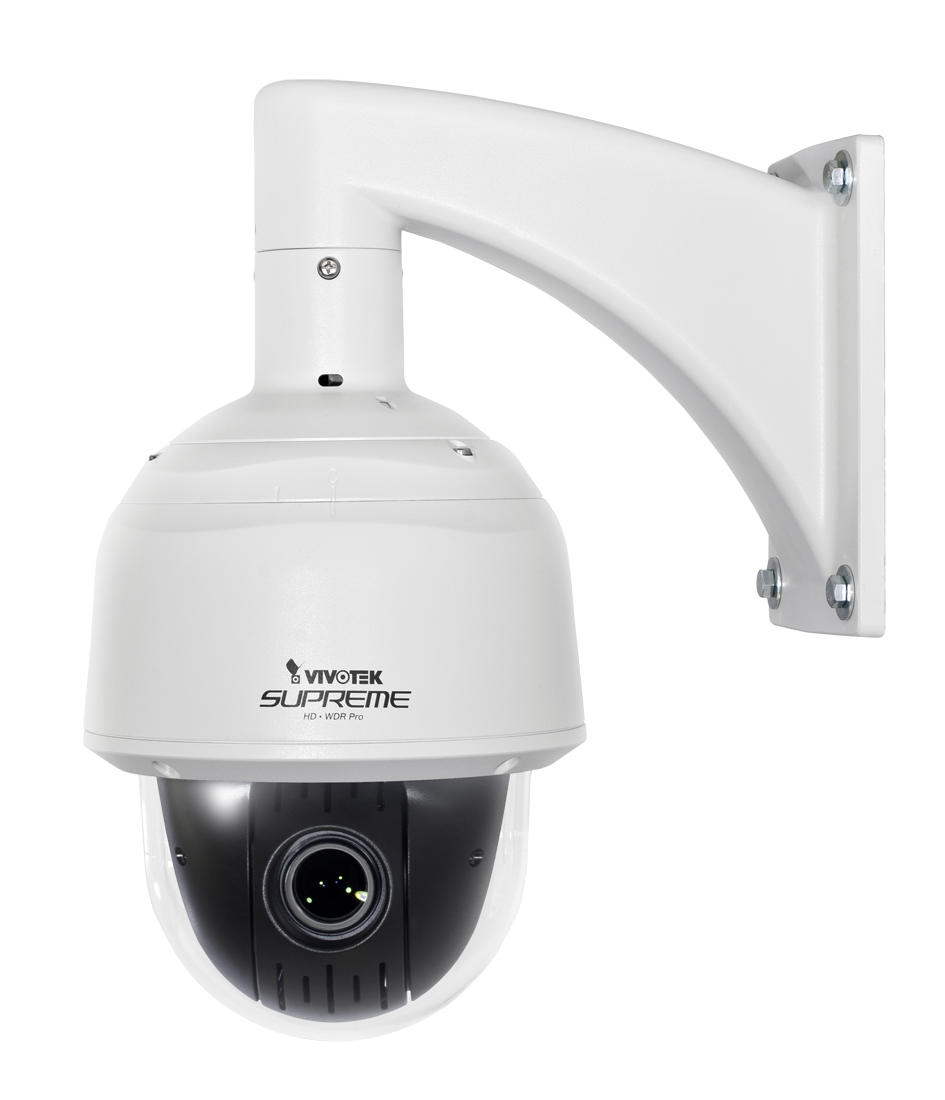

Vivotek SD8363E 20x Zoom HD Speed Dome Network Camera

Vivotek

Vivotek SD8363E 20x Zoom HD Speed Dome Network Camera

Sale price$2,280.00
Discontinued
SKU: SD8363E

Discontinued; replaced by the SD9361-EHL.

Vivotek SD8363E Features

  • Max Resolution: 1920x1080
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.02 Lux @ F1.6 (color), 0.001 Lux @ F1.6 (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: N/A
  • Focal Length: f = 4.7 ~ 94 mm, F1.6 (wide), F3.5 (tele)
  • Zoom: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Pan Range: 360° endless
  • Tilt Range: 220° ( -110° ~ +110° )
  • Number of Presets: 256
  • Modes: Auto pan & auto patrol
  • Iris: DC-iris
  • Focus: Auto
  • Field of View: 3° ~ 55° (horizontal), 2° ~ 32° (vertical), 3° ~ 64° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: 30 fps @ 1920x1080, 60 fps @ 1280x720 (up to 20/15 fps in WDR mode) in all compression styles
  • Image Settings: WDR Pro, Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC, AWB, AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation), EIS (Electronic Image Stabilizer)
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Audio input / Audio output (Full duplex), External microphone input, External line output
  • Alarm/Event Management: Triple-window video motion detection, 3 D/I & 2 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Audio detection, auto-tracking on moving object
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes, SD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66- and NEMA 4X-rated metal housing
  • Dimensions: 205mm x 321mm
  • Weight: 3660 g
  • Operating Temperature: -5°C ~ 55°C (PoE Plus), -40°C ~ 55°C (AC 24V / High Power PoE)
  • Operating Humidity: N/A
  • Power: PoE plus (IEEE 802.3at compliant), High Power PoE, AC 24V
  • Warranty: 3 Years
  • What's Included: SD8383E, PC/ABS/smoked dome cover, screwdriver, screws, wall mount bracket, alignment sticker, ethernet cable, ground wire, quick installation guide, software CD, terminal, waterproof connector
  • Please note: This camera supports Vivotek's Panoramic PTZ technology when paired with any SF model fisheye dome
Vivotek SD8363E Overview

VIVOTEK SD8363E is part of the SUPREME series product line offering 1080p Full HD resolution with superb image quality. Adopting a 20x optical zoom lens, the SD8363E is able to capture details at top-notch quality. The IP66- and NEMA 4X-rated housing protects the camera body against rain, dust, and corrosion within a wide temperature range of between -40°C to 55°C. This feature ensures operation under extreme weather conditions and hazardous environments. It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required. The SD8363E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 30 fps @ 1080p. Boasting WDR Pro technology, the SD8363E can also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye. With a sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track the object of interest and set up to 256 preset positions for patrolling. With the built-in auto tracking feature, the SD8363E provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity. As with all VIVOTEK true day/night cameras, the SD8363E features a removable IR-cut filter, maintaining clear images 24 hours a day. With audio detection, by recognizing increases or decreases in sound volume, an additional layer of intrusion detection is ensured. Zoom enhancement provides 60x optical zoom at 640x360 resolution by which VGA-level bandwidth is used to obtain image details as high as 1080p resolution. With other advanced features such as SD/SDHC/SDXC card slot, 802.3at compliant PoE Plus and 60 fps high quality video, the SD8363E is the best choice for the most demanding outdoor surveillance applications.
