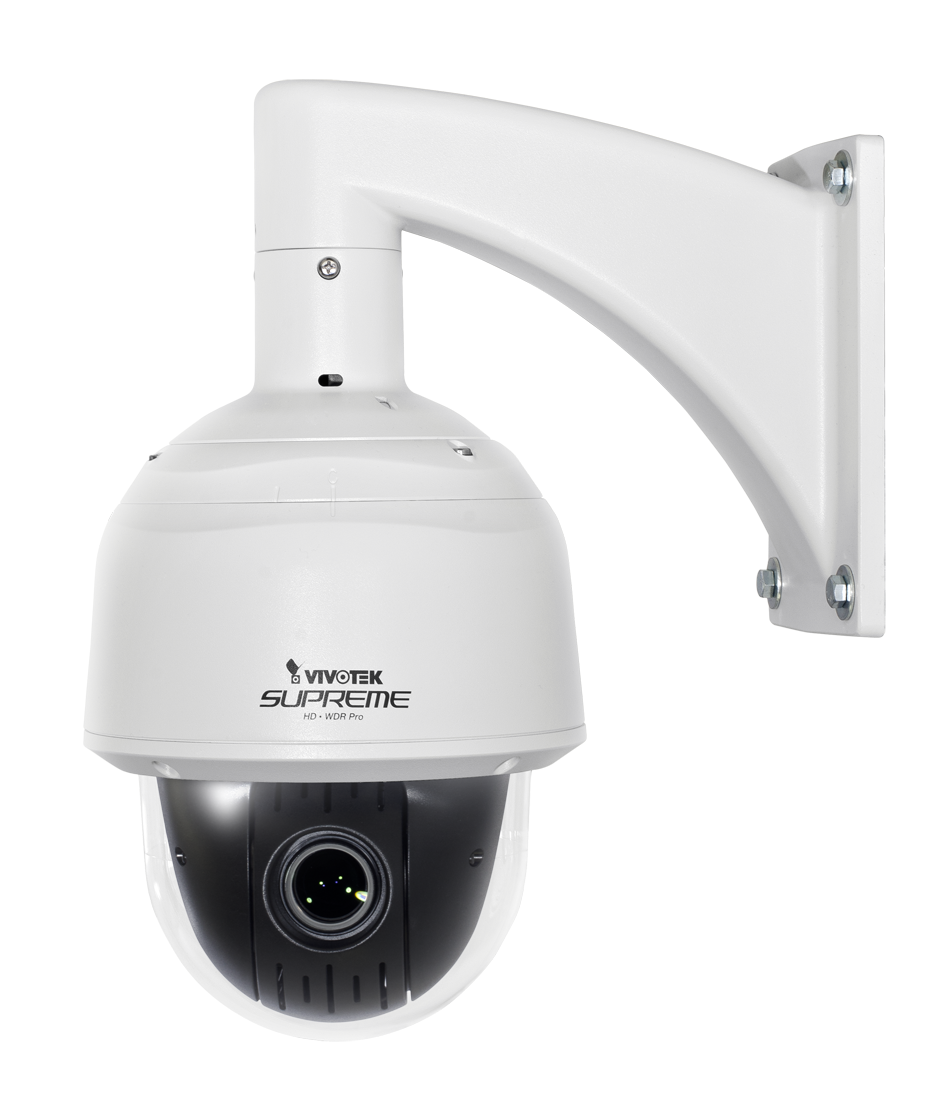

Vivotek SD8363E-M
Vivotek SD8363E-M 20x Zoom HD Speed Dome Network Camera with Built-in electrical dehumidifier device

Vivotek

Vivotek SD8363E-M 20x Zoom HD Speed Dome Network Camera with Built-in electrical dehumidifier device

$2,512.00
Discontinued
SKU: SD8363E-M

Discontinued - Recommended Replacement: N/A

Link to Manufacturer's Page

Contact

Vivotek SD8363E-M Features

  • Max Resolution: 1920x1080
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.02 Lux @ F1.6 (color), 0.001 Lux @ F1.6 (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: N/A
  • Focal Length: f = 4.7 ~ 94 mm, F1.6 (wide), F3.5 (tele)
  • Zoom: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Pan Range: 360° endless
  • Tilt Range: 220° ( -110° ~ +110° )
  • Number of Presets: 256
  • Modes: Auto pan & auto patrol
  • Iris: DC-iris
  • Focus: Auto
  • Field of View: 3° ~ 55° (horizontal), 2° ~ 32° (vertical), 3° ~ 64° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: 30 fps @ 1920x1080, 60 fps @ 1280x720 (up to 20/15 fps in WDR mode) in all compression styles
  • Image Settings: WDR Pro, Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC, AWB, AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation), EIS (Electronic Image Stabilizer)
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Audio input / Audio output (Full duplex), External microphone input, External line output
  • Alarm/Event Management: Triple-window video motion detection, 3 D/I & 2 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Audio detection, auto-tracking on moving object
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes, SD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66- and NEMA 4X-rated metal housing
  • Dimensions: 205mm x 321mm
  • Weight: 3660 g
  • Operating Temperature: -5°C ~ 55°C (PoE Plus), -40°C ~ 55°C (AC 24V / High Power PoE)
  • Operating Humidity: N/A
  • Power: PoE plus (IEEE 802.3at compliant), High Power PoE, AC 24V
  • Warranty: 3 Years
  • What's Included: SD8383E, PC/ABS/smoked dome cover, screwdriver, screws, wall mount bracket, alignment sticker, ethernet cable, ground wire, quick installation guide, software CD, terminal, waterproof connector
  • Please note: This camera supports Vivotek's Panoramic PTZ technology when paired with any SF model fisheye dome. Built-in electrical dehumidifier device
Vivotek SD8363E-M Overview
