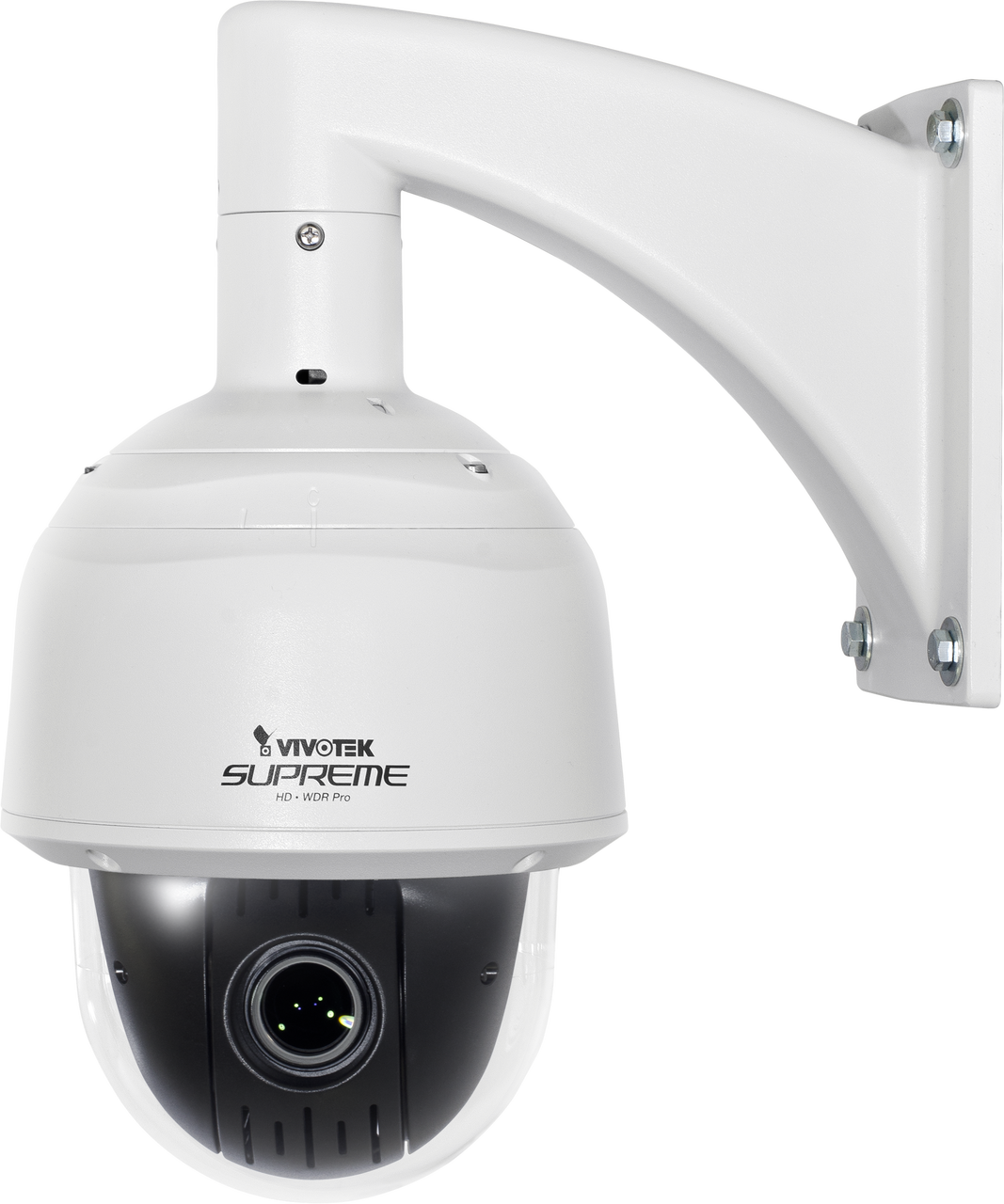

Vivotek SD8364E 30x Zoom HD Speed Dome Network Camera


Vivotek SD8364E 30x Zoom HD Speed Dome Network Camera

Sale price$2,275.00
SKU: SD8364E

Discontinued; replaced by the SD9362-EH or SD9362-EHL.

Vivotek SD8364E Features

  • Max Resolution: 1920 x 1080 (2MP)
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.5 Lux @ F1.6, 30 IRE (Color), 0.03 Lux @ F1.6, 30 IRE (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: N/A
  • Focal Length: f=4.3 ~ 129 mm / F1.6 ~ 4.7
  • Zoom: 30x optical zoom, 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Pan Range: 360° endless
  • Tilt Range: 220° (-110° ~ +110°)
  • Number of Presets: 256 preset locations
  • Modes: Auto pan & Auto patrol
  • Iris: DC-iris
  • Focus: Auto
  • Field of View: 23° ~ 64° (horizontal), 13° ~ 36° (vertical), 26° ~ 73° (diagonal)
  • Compression Styles: H.264, MJPEG, & MPEG-4
  • Frame Rate: 60 fps @ 1280 x 720; 30 fps @ 1920 x 1080 in all compression styles
  • WDR Technology: WDR Pro
  • Image Settings: Defog, Electronic Image Stabilization, Supreme Night Vision, Adjustable resolution, quality and bitrate, Zoom enhancement for better image quality under limited bandwidth, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, Scheduled profile settings
  • Privacy Mask: Yes, up to 24
  • Built-in Microphone: No
  • Audio Capabilities: Supports two-way audio with audio input/output (full duplex)
  • Alarm/Event Management: Triple-window video motion detection, Auto-tracking on moving object, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server, Auto Tracking for Moving Objects
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, built-in SD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 weather-proof & NEMA 4X
  • Dimensions: Ø: 205 mm x 321 mm
  • Weight: 3660 g (8.07 lb)
  • Operating Temperature: -5°C ~ 55°C (PoE Plus), -40°C ~ 55°C (AC 24V), -40°C ~ 55°C (High Power PoE)
  • Operating Humidity: N/A
  • Power: PoE Plus (no heater), High Power PoE, & AC 24V (power supply sold separately)
  • Warranty: 3 years
  • What's Included: Wall mount bracket, screws, waterproof connectors, terminal blocks, quick installation guide, warranty card, alignment sticker, ground wire, T25 stardriver, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)
  • Please note: This camera supports Vivotek's Panoramic PTZ technology when paired with any SF model fisheye dome

Vivotek SD8364E Overview

VIVOTEK SD8364E is part of the SUPREME series product line offering 1080p Full HD resolution with superb image quality. Adopting a 30x optical zoom lens, the SD8364E is able to capture details at top-notch quality. The IP66- and NEMA 4X-rated housing protects the camera body against rain, dust and corrosion within a wide temperature range between -40°C to 55°C. This feature ensures operation under extreme weather conditions and hazardous environments. It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required. The SD8364E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 30 fps @ 1080p. Boasting WDR Pro technology, the SD8364E can also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye. With a sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track the object of interest and set up to 128 preset positions for patrolling. With the built-in auto tracking feature, the SD8364E provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity. As with all VIVOTEK true day/night cameras, the SD8364E features a removable IR-cut filter, maintaining clear images 24 hours a day. With audio detection, by recognizing increases or decreases in sound volume, an additional layer of intrusion detection is ensured. With other advanced features such as SD/SDHC/SDXC card slot, 802.3at compliant PoE Plus and 60 fps high quality video, the SD8364E is the best choice for the most demanding outdoor surveillance applications.
