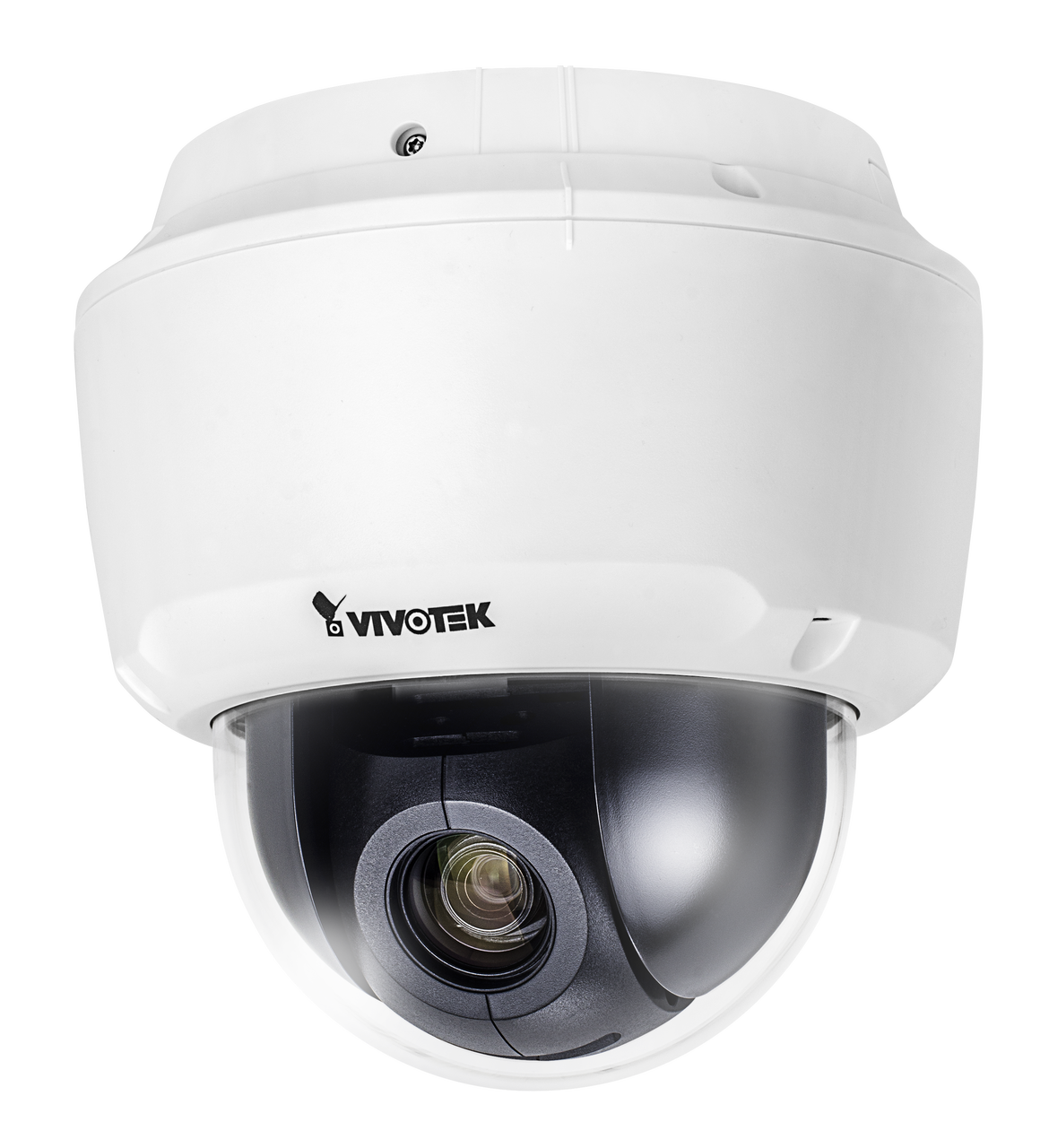

Vivotek SD9161-H 2MP 10x Zoom Indoor Speed Dome Network Camera

Vivotek SD9161-H Features

• Max Resolution: 1920 x 1080 (2MP)
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.2 Lux @ F1.6 (Color); 0.01 Lux @ F1.6 (B/W)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Auto Focus
• Focal Length: f = 5.1 ~ 51 mm / F1.6 ~ F1.8
• Zoom: 10x optical zoom, 128x digital zoom (4x on IE plug-in, 32x built-in)
• Pan Range: 360° endless
• Tilt Range: 90°
• Number of Presets: 256 preset locations, 128 presets per tour
• Modes: Auto pan & Auto patrol
• Iris: DC-iris
• Focus: Auto
• Field of View: 4.9° ~ 54° (Horizontal), 4° ~ 31° (Vertical), 6.7° ~ 68° (Diagonal)
• Compression Styles: 4.9° ~ 54° (Horizontal) 4° ~ 31° (Vertical) 6.7° ~ 68° (Diagonal)
• Frame Rate: 30 fps @ 1920x1080 in all compression modes
• WDR Technology: Yes, WDR Pro
• Image Settings: Adjustable resolution, quality and constant bit rate control, Smart Stream II, Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (up to 24) Scheduled profile settings, EIS, 3DNR, defog, Auto-tracking on moving object
• Privacy Mask: N/A
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio with External microphone input & External line output (full duplex)
• Alarm/Event Management: 5 Window Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection Alarm Events Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in MicroSD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: Ø 172 x 157 mm (Camera Body)
• Weight: 1043 g
• Operating Temperature: : 0°C ~ 55°C (32°F ~ 131°F)
• Operating Humidity: 90%
• Power/Consumption: 24V DC 24V AC IEEE 802.3at PoE Class 4 / 15W max
• Warranty: 3 years
• What's Included: Indoor pendant mount, quick installation guide, alignment sticker, L-wrench, software CD (User's manual, quick installation guide, Installation Wizard 2, VAST), power cable

Vivotek SD9161-H Overview

VIVOTEK's SD9161-H is a high-performance H.265 speed dome network camera, offering 1080p Full HD resolution and consistently superb image quality. Adopting the power of a 10x optical zoom lens and the maneuverability of a sophisticated pan/tilt mechanism, the SD9161-H is able to capture fine detail at top-notch quality and is especially suitable for wide-open indoor spaces, such as airports and lobbies, where the highest levels of reliability and precision are required.

Featuring the Wide Dynamic Range Technology, WDR Pro, the SD9161-H provides improved visibility in both extremely dark and light environments. Additionally, this unique camera also supports VIVOTEK's sophisticated Smart Stream II, enabling the optimization of quality for desired regions and thus delivering the maximum possible efficiency of bandwidth usage. Combining H.265 compression technology and VIVOTEK's Smart Stream II technology, users can enjoy bandwidth savings of up to 80%* compared to traditional H.264 systems.

Incorporating a number of advanced features standard for VIVOTEK cameras, including EIS, tamper detection, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the SD9161-H is the ideal solution for your indoor surveillance needs.
