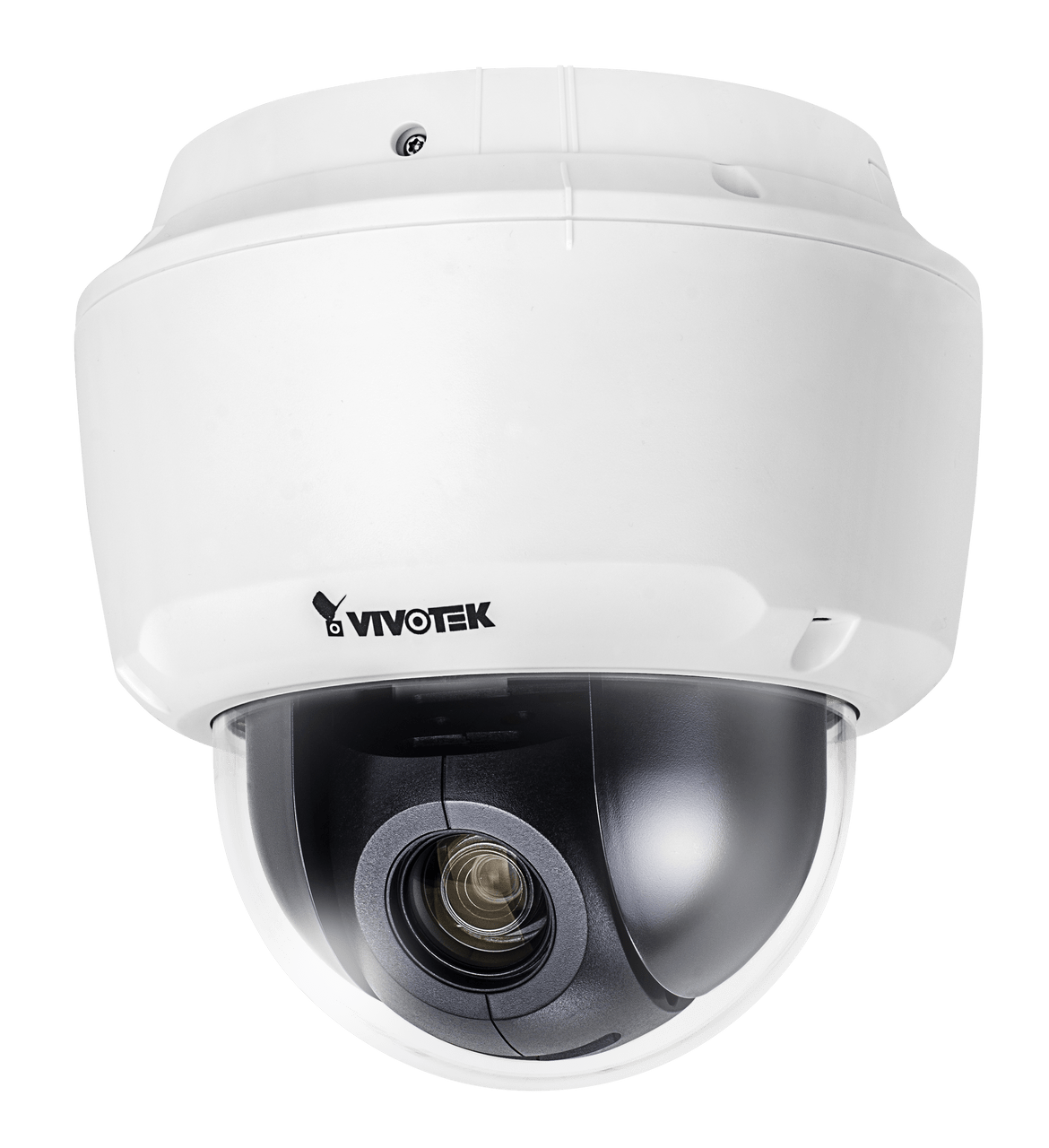

Vivotek SD9161-H VVAV 2MP H.265 Indoor 10X Zoom WDR Pro Speed Dome Camera
Quantity:
Choose options
Quantity:
Key Features
- H.265 Compression Technology
- 1080P Full HD CMOS Sensor
- 30 fps @ 1920x1080
- 10x Optical Zoom
- Removable IR-cut Filter for Day & Night Function
- 360° Continuous Pan and 180° Tilt
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Smart Stream II to Optimize Bandwidth Efficiency
- Built-in 802.3at Compliant PoE
- Auto Tracking for Moving Objects
Overview
VIVOTEK's SD9161-H is a high-performance H.265 speed dome network camera, offering 1080p Full HD resolution and consistently superb image quality. Adopting the power of a 10x optical zoom lens and the maneuverability of a sophisticated pan/tilt mechanism, the SD9161-H is able to capture fine detail at top-notch quality and is especially suitable for wide-open indoor spaces, such as airports and lobbies, where the highest levels of reliability and precision are required.
Featuring the Wide Dynamic Range Technology, WDR Pro, the SD9161-H provides improved visibility in both extremely dark and light environments. Additionally, this unique camera also supports VIVOTEK's sophisticated Smart Stream II, enabling the optimization of quality for desired regions and thus delivering the maximum possible efficiency of bandwidth usage. Combining H.265 compression technology and VIVOTEK's Smart Stream II technology, users can enjoy bandwidth savings of up to 80%* compared to traditional H.264 systems.
Incorporating a number of advanced features standard for VIVOTEK cameras, including EIS, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the SD9161-H is the ideal solution for your indoor surveillance needs.
* Depending on scene being monitored
Featuring the Wide Dynamic Range Technology, WDR Pro, the SD9161-H provides improved visibility in both extremely dark and light environments. Additionally, this unique camera also supports VIVOTEK's sophisticated Smart Stream II, enabling the optimization of quality for desired regions and thus delivering the maximum possible efficiency of bandwidth usage. Combining H.265 compression technology and VIVOTEK's Smart Stream II technology, users can enjoy bandwidth savings of up to 80%* compared to traditional H.264 systems.
Incorporating a number of advanced features standard for VIVOTEK cameras, including EIS, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the SD9161-H is the ideal solution for your indoor surveillance needs.
* Depending on scene being monitored
Camera Features
- Image Sensor
- 1/3" Progressive CMOS
- Max. Resolution
- 1920x1080 (2MP)
- Lens Type
- 10x Optical Zoom, Auto Focus
- Focal Length
- f = 5.1 ~ 51 mm (10x zoom)
- Aperture
- F1.6 ~ F1.8
- Auto-iris
- DC-iris
- Field of View
- 4.9° ~ 54° (Horizontal)
4° ~ 31° (Vertical)
6.7° ~ 68° (Diagonal)
- Shutter Time
- 1/8 sec. to 1/30,000 sec.
- WDR Technology
- WDR Pro
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- Minimum Illumination
- 0.2 Lux @ F1.6 (Color)
0.01 Lux @ F1.6 (B/W)
- Pan Speed
- 0.05° ~ 360°/sec.
- Pan Range
- 360° endless
- Tilt Speed
- 0.05° ~ 360°/sec.
- Tilt Range
- 180°
- Preset Locations
- 256 preset locations, 128 presets per tour
- Pan/Tilt/Zoom Functionalities
- 128x digital zoom (4x on IE plug-in, 32x built-in)
Auto pan mode
Auto patrol mode
- On-board Storage
- Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 30 fps @ 1920x1080
In all compression modes
- Maximum Streams
- 4 simultaneous streams
- S/N Ratio
- 50 dB
- Dynamic Range
- 100 dB
- Video Streaming
- Adjustable resolution, quality and bit rate control, Smart Stream II
- Image Settings
- Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (up to 24), scheduled profile settings, EIS, 3D noise reduction, defog
Audio
- Audio Capability
- Two-way Audio (full duplex)
- Audio Compression
- G.711, G.726
- Audio Interface
- External microphone input
External line output
Network
- Users
- Live viewing for up to 10 clients
- Protocols
- 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Supported, specification available at www.onvif.org
Solution Integration
- Video Motion Detection
- Five-window video motion detection
- Auto-Tracking
- Auto-tracking on moving object
- VADP Package
- Trend Micro IoT Security
Alarm and Event
- Alarm Triggers
- Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events
- Event notification via digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Audio input
Audio output
DC/AC 24V power input
Digital input*4
Digital output*2
- LED Indicator
- System power and status indicator
- Power Input
- DC 24V
AC 24V
IEEE 802.3at PoE Class 4
- Power Consumption
- Max. 15 W
- Dimensions
- Ø 172 x 157 mm (Camera body)
- Weight
- 1,043 g
- Safety Certifications
- CE, LVD, FCC Class A, VCCI, C-Tick, UL
- Operating Temperature
- Starting Temperature: -10°C ~ 55°C (14°F ~ 131°F)
Working Temperature: -10°C ~ 55°C (14°F ~ 131°F)
- Humidity
- 90%
- Warranty
- 36 months
System Requirements
- Operating System
- Microsoft Windows 8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
- CD
- User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software
- Others
- Indoor pendant mount, quick installation guide, alignment sticker, L-wrench, software CD, power cable
