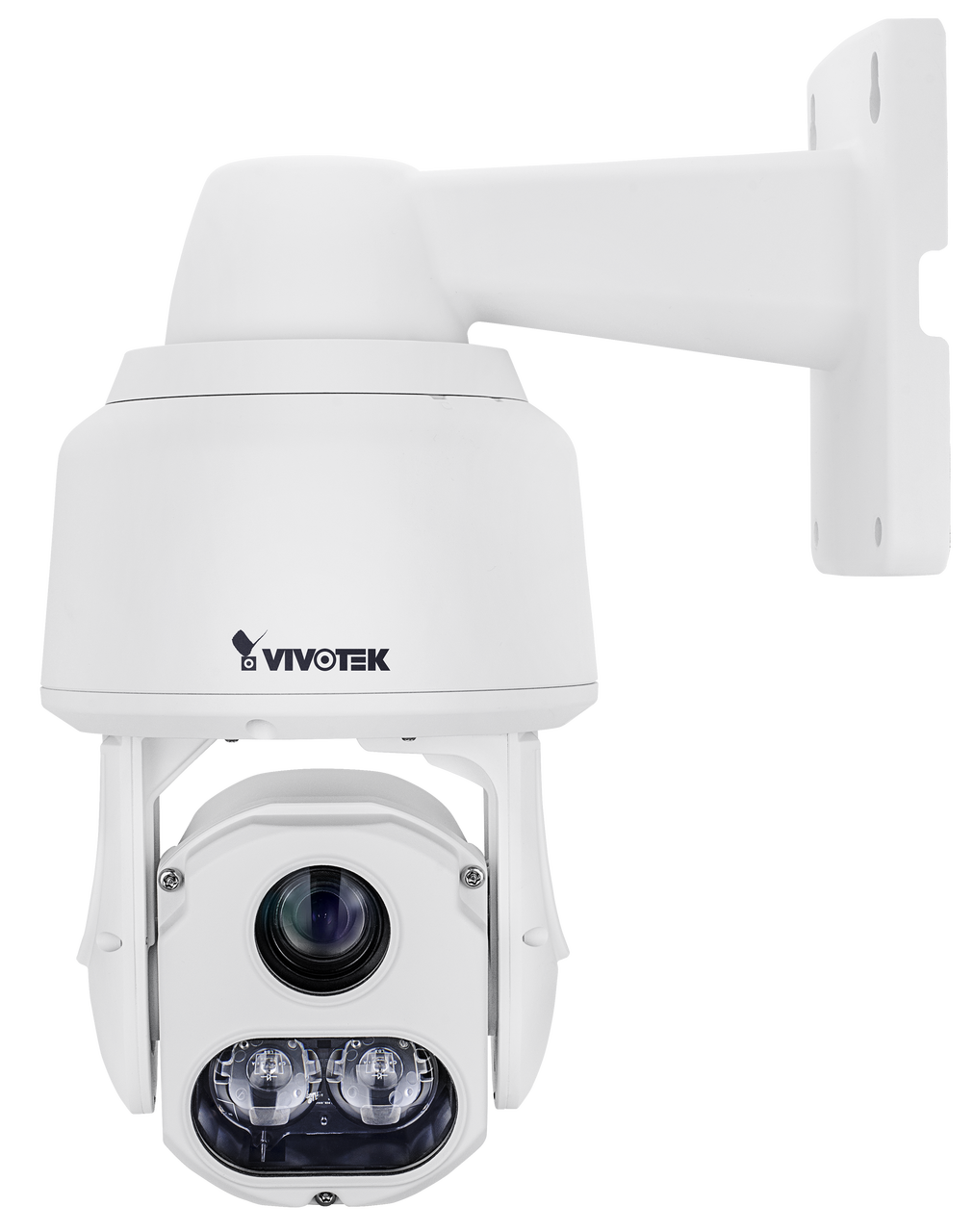

Vivotek SD9363-EHL 20x Zoom 1080P IR Speed Dome Network Camera

Replaced by the SD9364-EHL-v2

Vivotek SD9363-EHL Features

• Max Resolution: 1920 x 1080 (2MP)
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Removable IR-cut filter for day & night function
• Minimum Illumination: 0.26 Lux @ F1.6 (Color); 0.01 Lux @ F1.6 (B/W)
• IR Illuminators: Yes
• IR Illuminator Range: 150m
• Lens Type: N/A
• Focal Length: f = 4.7 ~ 94 mm (20x zoom) / F1.6 ~ F3.5
• Zoom: 20x optical zoom, 128x digital zoom (4x on IE plug-in, 32x built-in)
• Pan Range: 360° endless
• Tilt Range: 220° (-110° ~ +110°)
• Number of Presets: 256 preset locations, 128 presets per tour
• Modes: Auto pan & Auto patrol
• Iris: DC-iris
• Focus: Auto
• Field of View: 3° ~ 55° (Horizontal); 2° ~ 33° (Vertical); 3° ~ 63° (Diagonal)
• Compression: H.265, H.264, MJPEG
• Frame Rate: 60 fps @ 1920x1080 in all compression modes
• WDR Technology: WDR Pro
• Image Settings: Adjustable resolution, quality and bitrate, Smart Stream II, Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24) Scheduled profile settings, Defog, 3DNR, EIS, HLC
• Privacy Mask: Yes, up to 24
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio with audio input/output (full duplex)
• Alarm/Event Management: Five-window video motion detection, Auto-tracking on moving object, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection, Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD CardFile upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clientVIV-S
• On-board Storage: Slot type: SD/SDHC/SDXC card slot Seamless Recording
• Indoor/Outdoor: Outdoor
• Housing Enclosure Rating: Weather-proof IP66, Vandal-proof IK10, and NEMA 4X-rated housing
• Dimensions: 204 mm x 285 mm
• Weight: 6030 g (13.29 lb)
• Operating Temperature: -50°C ~ 55°C (-58°F ~ 131°F)
• Operating Humidity: 90%
• Power/Consumption: 95W PoH/PoE, DC 48V / Max. 87 W (Heater on), Max. 39 W (Heater off)
• Warranty: 3 years
• What's Included: User's manual, quick installation guide, Installation Wizard 2, VAST, Wall mount bracket, screws, waterproof connectors, terminal blocks, quick installation guide, warranty card, alignment sticker, ground wire, T25 stardriver, software CD, desiccant bags, AO-003 I/O cable

Vivotek SD9363-EHL Overview

The SD9363-EHL is the latest professional speed dome camera from VIVOTEK, specifically designed to enhance low light surveillance in large coverage areas. Equipped with 150 M IR illuminators and a 20x optical zoom lens, the SD9363-EHL provides a superb low light image in the most challenging situations. The SD9363-EHL also adopts VIVOTEK's latest IR technology, VAIR (Vari-Angle IR). VIVOTEK's VAIR provides smooth variangle adjustment of the IR illuminators, allowing broad coverage FOV and highly uniform IR intensity while avoiding hot-spots traditionally associated with IR illumination.

The SD9363-EHL is the PTZ surveillance camera with IR Illumination to utilize H.265 compression technology. When combined with VIVOTEK's Smart Stream II technology users can obtain bandwidth savings of up to 80%* compared to traditional H.264. By combining 1080p full HD resolution with H.265, IR illuminators, VAIR, WDR, and 20x optical zoom, the SD9363-EHL is able to capture fine details at top-notch quality, 24 hours a day, 7 days a week. VIVOTEK further strengthened the camera performance with an IP66- and NEMA 4X-rated housing to protect the camera against rain, dust, and corrosion. The SD9363-EHL has a wide operating temperature range from -50°C to 55°C, ensuring continuous operation under the most extreme weather conditions and hazardous environments. This makes the SD9363-EHL ideally suited to monitor wide open spaces such as ports, highways, cities, and parking lots where high-level precision is required.

As with all VIVOTEK true day/night cameras, the SD9363-EHL features a removable IR-cut filter, maintaining clear images 24 hours a day. Audio detection is included by recognizing changes in ambient noise. The SD9363-EHL also includes a SD/SDHC/SDXC card slot and supports up to 60 fps in 1080P full HD. For the most demanding outdoor surveillance application, there is nothing that compares to the VIVOTEK SD9363-EHL.
