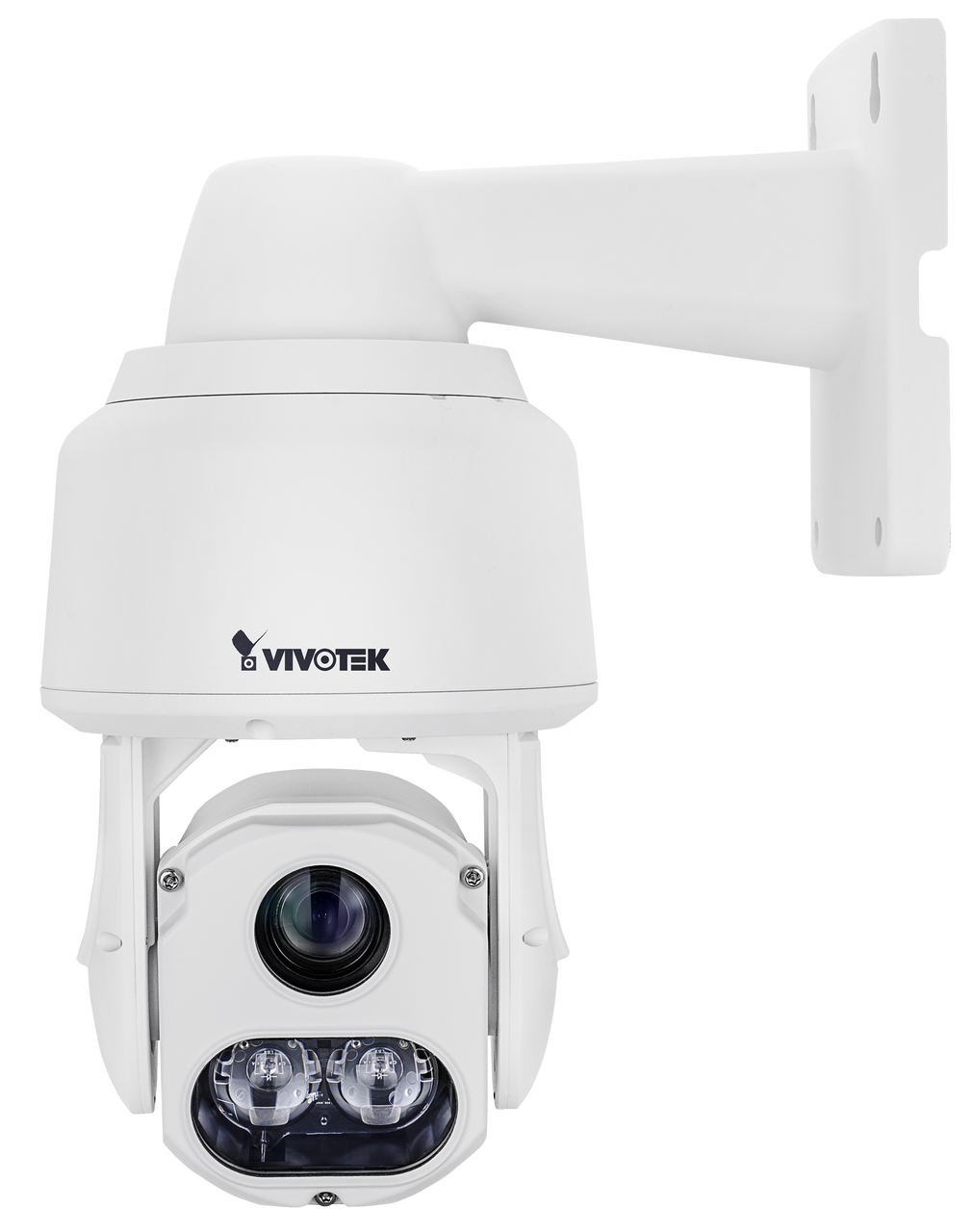

Vivotek SD9364-EH 30x Zoom 1080P IR Speed Dome Network Camera

Replaced by the SD9366-EH.

Vivotek SD9364-EH Features

• Max Resolution: 1920 x 1080 (2MP)
• Image Sensor: 1/2.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.07 Lux @ F1.6 (Color), 0 Lux @ F1.6 (B/W)
• IR Illuminators: Yes
• IR Illuminator Range: 250m
• Lens Type: Motorized vari-focal
• Focal Length: f = 4.3~129 mm / F1.6 ~ F4.7
• Zoom: 30x optical zoom, 48x digital zoom (4x on IE plug-in, 12xbuilt-in)
• Pan Range: 360° endless
• Tilt Range: 220° (-110° ~ +110°)
• Number of Presets: 256 preset locations, 128 presets per tour
• Modes: Auto pan & Auto patrol
• Iris: DC-iris
• Focus: Auto
• Field of View: 2.3° ~ 64° (Horizontal) 1.3° ~ 36° (Vertical) 2.6° ~ 73° (Diagonal)
• Compression Styles: H265, H264, MJPEG
• Frame Rate: H.265 & H.264: 60 fps @ 1920x1080; MJPEG: 30 fps @ 1920x1080
• WDR Technology: WDR Pro
• Image Settings: Adjustable resolution, quality and bitrate Smart Stream II Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24); Scheduled profile settings, Defog, 3DNR, EIS, HLC
• Privacy Mask: Yes, up to 24
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio with external audio input/output
• Alarm/Event Management: Five-window video motion detection, Auto-tracking on moving object, Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in SD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP67, Vandal-proof IK10, and NEMA 4X-rated housing
• Dimensions: Ø: 204 mm x 285 mm
• Weight: 7.43 kg (with bracket); 6.03 kg (without bracket)
• Operating Temperature: -50°C ~ 55°C (-58°F ~ 131°F)
• Operating Humidity: 90%
• Power/Consumption: 95W PoH/PoE, DC 48V / Max. 81.8 W (Heater on), Max. 28.5 W (Heater off)
• Warranty: 3 years
• What's Included: Camera, Wall mount bracket (AM-220), screws, I/O cable, screws, waterproof connectors, terminal blocks, quick installation guide, warranty card, alignment sticker, ground wire, T25 stardriver, software CD, desiccant bags

Vivotek SD9364-EH Overview

The SD9364-EH is the latest professional speed dome camera from VIVOTEK, specifically designed to enhance low light surveillance in large coverage areas. Equipped with 250 M IR illuminators and a 30x optical zoom lens, the SD9364-EH provides a superb low light image in the most challenging situations. The SD9364-EH also adopts VIVOTEK's latest IR technology, VAIR (Vari-Angle IR). VIVOTEK's VAIR provides smooth vari-angle adjustment of the IR illuminators, allowing broad coverage FOV and highly uniform IR intensity while avoiding hot-spots traditionally associated with IR illumination. The SD9364-EH is the first PTZ surveillance camera with IR Illumination to utilize H.265 compression technology.

When combined with VIVOTEK's Smart Stream II technology users can obtain bandwidth savings of up to 80% compared to traditional H.264. By combining 1080p full HD resolution with H.265, IR illuminators, VAIR, WDR, and 30x optical zoom, the SD9364-EH is able to capture fine details at top-notch quality, 24 hours a day, 7 days a week. VIVOTEK further strengthened the camera performance with an IP67- and NEMA 4X-rated housing to protect the camera against rain, dust, and corrosion. The SD9364-EH has a wide operating temperature range from -50°C to 55°C, ensuring continuous operation under the most extreme weather conditions and hazardous environments. This makes the SD9364-EH ideally suited to monitor wide open spaces such as ports, highways, cities, and parking lots where high-level precision is required.

As with all VIVOTEK true day/night cameras, the SD9364-EH features a removable IR-cut filter, maintaining clear images 24 hours a day. Audio detection is included by recognizing changes in ambient noise. The SD9364-EH also includes a SD/SDHC/SDXC card slot and supports up to 60 fps in 1080P full HD. For the most demanding outdoor surveillance application, there is nothing that compares to the VIVOTEK SD9364-EH.
