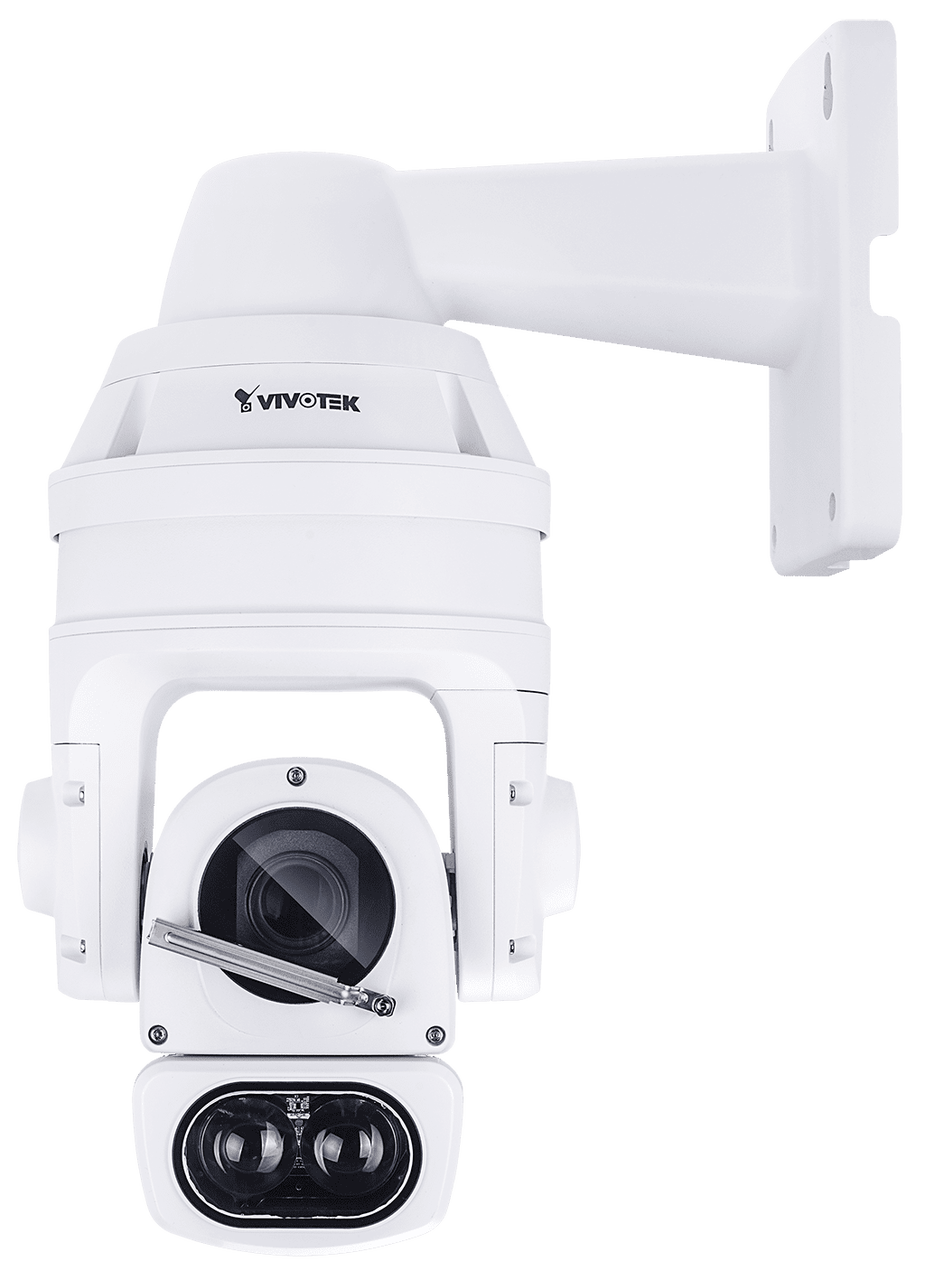

Vivotek SD9366-EHL 2MP 30x Zoom VAIR Speed Dome Network Camera

Discontinued - Recommended Replacement: SD9368-EHL

Vivotek SD9366-EHL Features

• Max Resolution: 1920 x 1080 (2MP)
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Removable IR-cut filter for day & night function
• Minimum Illumination: 0.42 Lux @ F1.6 (Color), 0.01 Lux @ F1.6 (B/W), 0 Lux with IR illumination on
• IR Illuminators: Yes
• IR Illuminator Range: 150m
• Lens Type:Motorized vari-focal
• Focal Length: f = 4.7 ~ 129 mm (30x zoom) / F1.6 ~ F4.7
• Zoom: 30x optical zoom, 128x digital zoom (4x on IE plug-in, 32x built-in)
• Pan Range: 360° endless
• Tilt Range: 220° (-110° ~ +110°)
• Number of Presets: 256 preset locations, 128 presets per tour
• Modes: Auto pan & Auto patrol
• Iris: DC-iris
• Focus: Auto
• Field of View: 2.3° ~ 64° (Horizontal), 1.3° ~ 36° (Vertical), 2.6° ~ 73° (Diagonal)
• Compression: H.265, H.264, MJPEG
• Frame Rate: 60 fps @ 1920x1080 (H.265 & H.264), 30 fps (MJPEG)
• WDR Technology: WDR Pro
• Image Settings: Adjustable resolution, quality and bitrate, Smart Stream II, Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24); Scheduled profile settings, defog, 3DNR, EIS, HLC
• Privacy Mask: Yes, up to 24
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio with external microphone input & external line output
• Alarm/Event Management: Five-window video motion detection, Auto-tracking on moving object, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP, NAS server and Micro SD card File upload via HTTP, SMTP, FTP, NAS server and Micro SD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: Micro SD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing Enclosure Rating: Weather-proof IP66, Vandal-proof IK10, and NEMA 4X-rated housing
• Dimensions: 236.45 x 364.2 mm
• Weight: 5700 g (12.57 lb)
• Operating Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
• Operating Humidity: 90%
• Power/Consumption: PoH/PoE (95W) AC/DC 24V / PoH/PoE (95W): Max. 70 W (Heater on) Max. 39 W (Heater off); AC/DC 24V: Max. 96 W (Heater on) Max. 45 W (Heater off)
• Warranty: 3 years
• What's Included: User's manual, quick installation guide, Shepherd, VAST, Wall mount bracket (AM-220), screws, waterproof connectors, terminal blocks, quick installation guide, warranty card, alignment sticker, ground wire, T25 stardriver, software CD, desiccant bags, I/O cable

Vivotek SD9366-EHL Overview

The SD9366-EHL is the latest professional speed dome camera with wiper from VIVOTEK, specifically designed to enhance low light surveillance in large coverage areas. Equipped with 150M IR illuminators and a 30x optical zoom lens, the SD9366-EHL provides a superb low light image in the most challenging situations. The camera also adopts VIVOTEK's latest IR technology, VAIR (Vari-Angle IR). VIVOTEK's VAIR provides smooth vari-angle adjustment of the IR illuminators, allowing broad coverage FOV and highly uniform IR intensity while avoiding hot-spots traditionally associated with IR illumination.

The SD9366-EHL is the latest professional speed dome camera with wiper from VIVOTEK, specifically designed to enhance low light surveillance in large coverage areas. Equipped with 150M IR illuminators and a 30x optical zoom lens, the SD9366-EHL provides a superb low light image in the most challenging situations. The camera also adopts VIVOTEK's latest IR technology, VAIR (Vari-Angle IR). VIVOTEK's VAIR provides smooth vari-angle adjustment of the IR illuminators, allowing broad coverage FOV and highly uniform IR intensity while avoiding hot-spots traditionally associated with IR illumination.

VIVOTEK further strengthened the camera performance with an IP66- and NEMA 4X-rated housing to protect the camera against rain, dust, and corrosion. The SD9366-EHL has a wide operating temperature range from -40°C to 55°C, ensuring continuous operation under the most extreme weather conditions and hazardous environments. This makes the SD9366-EHL ideally suited to monitor wide open spaces such as ports, highways, cities, and parking lots where high-level precision is required.
