Vivotek

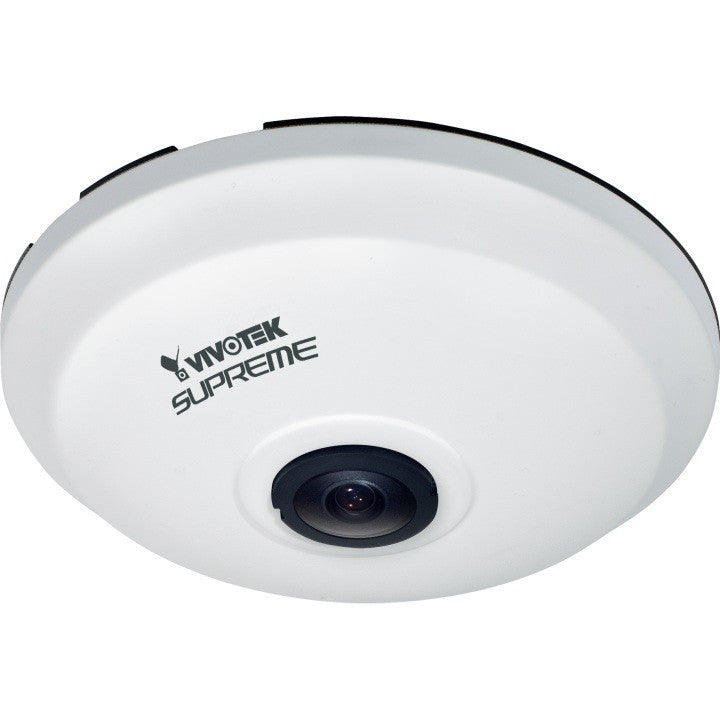

Vivotek SF8172 5MP 360° Surround View Fisheye Fixed Dome Network Camera
Discontinued - Recommended Replacement: SF8174
Discontinued; replaced by the SF8174
Vivotek SF8172 Features
- Max Resolution: 2560 x 1920
- Image Sensor: 1/2.5" Progressive CMOS sensor
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
- Minimum Illumination: 0.03 Lux @ F2.8, 50 IRE (Color) & 0.001 Lux @ F2.8, 50 IRE (B/W)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Fixed
- Focal Length: f = 1.05, F2.8
- Zoom: ePTZ, 12x digital zoom (12x on IE plug-in)
- Iris: N/A
- Focus: Auto
- Field of View: 180° Horizontal, Vertical, and Diagonal
- Compression Styles: H.264, MPEG-4 & MJPEG
- Frame Rate: 15 fps at 1920x1920, 30 fps at 1920x1080 in all compression styles
- Image Settings: WDR enhanced, Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, BLC (Backlight compensation), Supports privacy masks, Scheduled profile settings
- Privacy Mask: Yes
- Built-in Microphone: Yes (5 m effective range)
- Audio Capabilities: Audio input / Audio output (full duplex), External microphone input, external line input
- Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection; Event notification using digital output, HTTP, SMTP, FTP and NAS server
- ONVIF: Yes
- Users: Live viewing for up to 10 clients
- On-board Storage: Yes, MicroSD/SDHC/SDXC card slot
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: N/A
- Dimensions: Ø: 145 mm x 52 mm
- Weight: Net: 358g
- Operating Temperature: -40 ~ 50°C (-40 ~ 122°F)
- Operating Humidity: 90% RH
- Power: 802.3af Power-over-Ethernet (Class 2), 12V DC, Max. 5.1 W (DC 12V), Max. 5.3 W (PoE)
- Warranty: 3 Years
- What's Included: SF8172, Power & I/O Cables, Screws/Anchors/Cable Ties, Alignment Sticker, Quick Installation Guide, Software CD, Warranty Card
- Please note: This camera supports Vivotek's Panoramic PTZ technology when paired with the SD8362E
Vivotek SF8172 Overview
VIVOTEK SF8172/72V are the latest fisheye fixed dome network cameras from VIVOTEK, featuring a detailed 5-Megapixel resolution sensor with superb image quality. Equipped with a fisheye lens for 360° surround view (ceiling/floor/table mount) without blind spots, the camera is able to provide coverage of wide, open areas, such as airports, shopping malls, parking lots, retail stores, offices and more. As with all VIVOTEK true day/night cameras, the SF8172/72V feature removable IR-cut filters, maintainingclear images 24 hours a day. SF8172V’s IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions; additionally, the vandal-proof IK10-rated housing effectively provides robust protection from physical damage. Together with 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot for on-board storage, EN50155 (SF8172V only) and iPad applications, the SF8172/72V are indisputably the top choice for constructing a robust surveillance system with the greatest coverage possible. Moreover, SF8172/72V are compatible with the VIVOTEK Panoramic PTZ solution. Panoramic PTZ is a groundbreaking new technology developed by VIVOTEK for monitoring open areas with extreme detail. This feature is realized through the synergy of a VIVOTEK megapixel fisheye camera with speed dome camera, and allows users to simultaneously monitor an area overview from a fisheye model while providing the capability for a detailed regional view from a speed dome. Suitable applications for Panoramic PTZ include department stores, station lobbies, airports, parking lots, and any wide open areas where comprehensive video surveillance systems and the capability for extreme video detail are essential. The SF8172 provides electronic pan/tilt/zoom functions, allowing users to move to a target region in the viewing window without a mechanical movement. In a “panoramic view” and a “regional view”, users can utilize the ultra-smooth ePTZ function to easily focus on a region of interest (ROI) using the mouse wheel. Compared to the conventional mechanical PTZ, the ePTZ feature offers zero-wait operation through client-side control. In addition, with a high-end dewarping algorithm (plug-in), the ePTZ on the SF8172/72V respond swiftly and seamlessly to user’s control.
