Vivotek SF8174V
Vivotek SF8174V Internal Diagram
Vivotek SF8174V banner
Vivotek SF8174V supports Panoramic PTZ when paired with the SD8362E, SD8363E, or SD8364E
Vivotek SF8174V Mounting Options
Network Camera Store is an Authorized Vivotek Reseller
Vivotek SF8174V supports Panoramic PTZ when paired with the SD8362E, SD8363E, or SD8364E
Vivotek SF8174 with the SD8362E Speed Dome for Panoramic PTZ technology
WDR enhancement
Panoramic view
H.264 compression
Tamper detection
MicroSD/SDHC card slot
Removable IR-cut filter

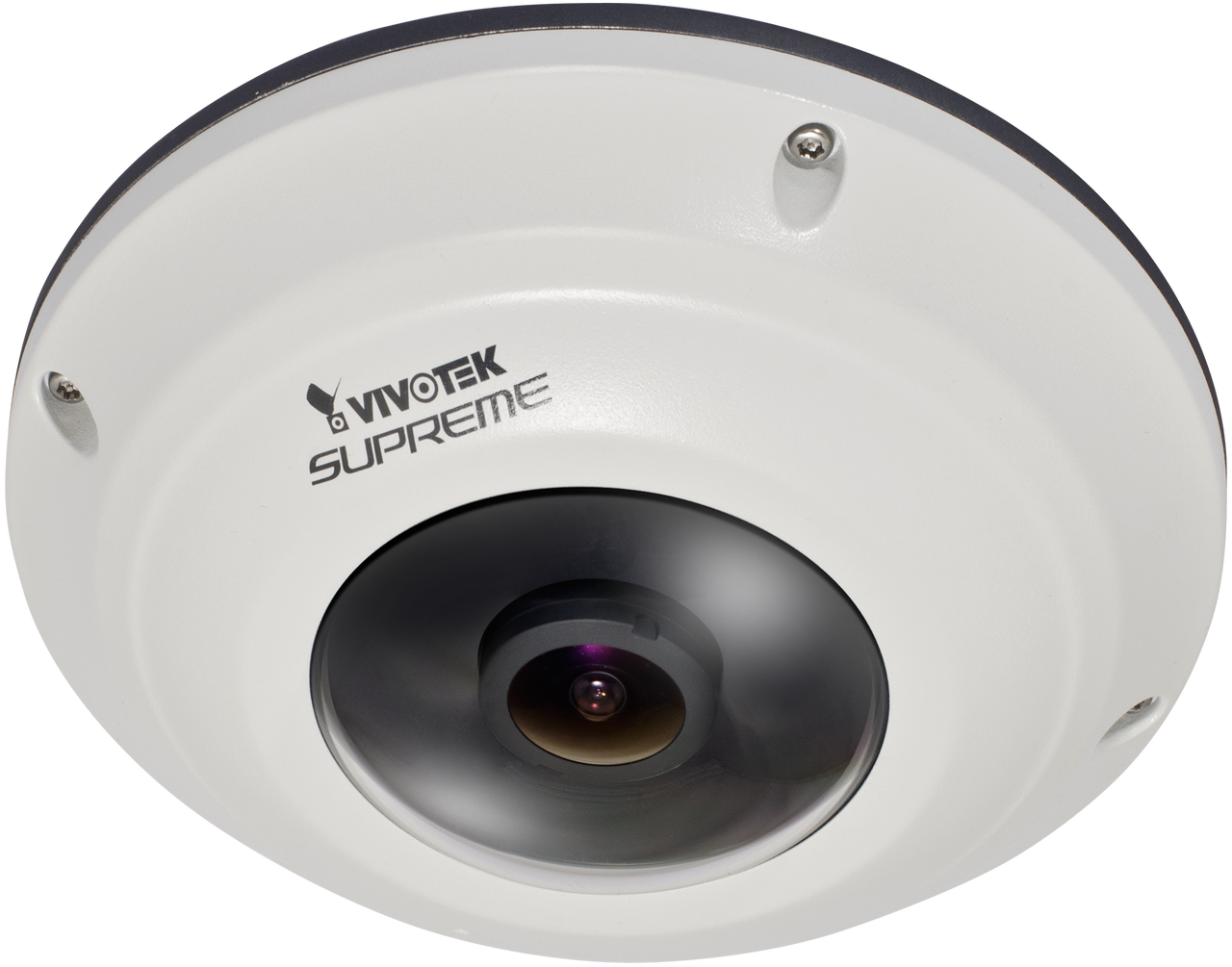

Vivotek SF8174V 5MP 360° Surround View Fisheye Fixed Dome Network Camera

Vivotek

Vivotek SF8174V 5MP 360° Surround View Fisheye Fixed Dome Network Camera

Sale price$881.25
Discontinued
SKU: SF8174V

Contact

Discontinued; replaced by the FE8174V.

Vivotek SF8174V Features

  • Max Resolution: 2560 x 1920
  • Image Sensor: 1/2.5" Progressive CMOS sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.5 Lux @ F2.8, 30 IRE (Color), 0.001 Lux @ F2.8, 50 IRE (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed
  • Focal Length: f = 1.05, F2.8
  • Zoom: ePTZ, 12x digital zoom (12x on IE plug-in)
  • Iris: N/A
  • Focus: Auto
  • Field of View: 180° Horizontal, Vertical, and Diagonal
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: 15 fps at 1920x1920, 30 fps at 1920x1080 in all compression styles
  • WDR Technology: Yes, WDR Enhanced
  • Image Settings: Adjustable image size, quality, and bit rate, Pixel counter, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, BLC (Backlight compensation), Supports privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: Yes (5 m effective range)
  • Audio Capabilities: Audio input / Audio output (full duplex), External microphone input, external line input
  • Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection; Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, MicroSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: Ø: 145 mm x 47 mm
  • Weight: 545g (1.2 lb)
  • Operating Temperature: -40 ~ 50°C (-40 ~ 122°F)
  • Operating Humidity: N/A
  • Power/Power Consumption: 802.3af Power-over-Ethernet (Class 2)/Max. 5.3 W, 12V DC/Max. 5.1 W
  • Warranty: 3 Years
  • What's Included: Camera, Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack, I/O cable, mounting bracket, software CD (User's manual, quick installation guide, Installation Wizard 2, VAST CMS (90-day free trial version)
  • Please note: This camera supports Vivotek's Panoramic PTZ technology when paired with the SD8362E, SD8363E, or SD8364E
Vivotek SF8174V Overview

VIVOTEK SF8174V is the latest fisheye fixed dome network cameras featuring a detailed 5-Megapixel resolution sensor with superb image quality. Equipped with a fisheye lens for 360° surround view (ceiling/floor/table mount) without blind spots, the camera is able to provide coverage of wide, open areas, such as airports, shopping malls, parking lots, retail stores, offices and more. As with all VIVOTEK true day/night cameras, the SF8174V features removable IR-cut filter, maintaining clear images 24 hours a day. SF8174V's IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions; additionally, the vandal-proof IK10-rated housing effectively provides robust protection from physical damage. Together with 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot for on-board storage and EN50155, the SF8174V is indisputably the top choice for constructing a robust surveillance system with the greatest coverage possible. Moreover, SF8174V is compatible with the VIVOTEK Panoramic PTZ solution. Panoramic PTZ is a groundbreaking new technology developed by VIVOTEK for monitoring open areas with extreme detail. This feature is realized through the synergy of a VIVOTEK megapixel fisheye camera with a speed dome camera, and allows users to simultaneously monitor an area overview from a fisheye model while providing the capability for a detailed regional view from a speed dome. Suitable applications for Panoramic PTZ include department stores, station lobbies, airports, parking lots, and any wide open areas where comprehensive video surveillance systems and the capability for extreme video detail are essential.
