Vivotek
Vivotek VS8100 1 Channel Video Server
Discontinued - Recommended Replacement: VS8100-v2
Discontinued; replaced by the VS8100-v2.
Vivotek VS8100 Features
- Maximum Frame Rate: 30 fps @ 720x480 or 25 fps @ 720x576 in both compression
- Compression: H.264 & MJPEG
- Maximum Streams: 3 simultaneous streams
- Video Streaming: Adjustable resolution, quality and bitrate
- Image Settings: Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, Privacy masks, Aspect ratio correction, Deinterlace, 2D De-noise
- Audio Capability: Line in & 3.5mm Phone Jack
- Users: Live viewing for up to 10 clients
- Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
- ONVIF: Yes
- Alarm/Event Management: Video motion detection, Video loss/restore detection, periodical trigger, manual trigger, recording notification, system boot, camera tampering detection: Event notification using HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
- Connectors: RJ-45 for Network connection,Male BNC for Analog video input, RS-485 Terminal Block, 3.5mm Phone Jack
- Suports P/T/Z Protocol: DynaDome/SmartDome, Pelco D, Pelco P, Lilin, Samsung scc643 and customized
- Power: DC 12V, Max. 5 W
- Safety Certifications: CE C-Tick FCC ( Class A ) LVD VCCI
- Dimensions: 65 mm (D) x 34 mm (W) x 25 mm (H)
- Operating Temperature: 0°C ~ 50 °C (32°F ~ 122°F)
- Warranty: 2 Year

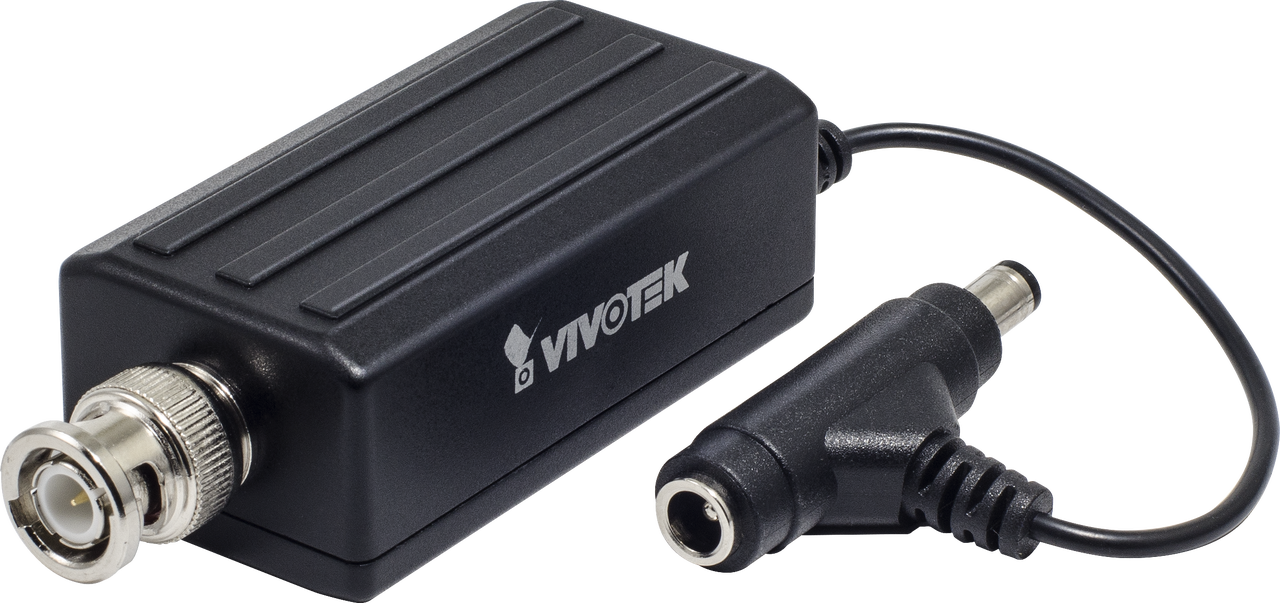

VIVOTEK VS8100 is a small-sized H.264 1-CH video server that helps you migrate from analog to digital surveillance system with ease. Its power sharing with CCTV and tiny design make it ideal for front-end installation and surveillance applications such as home, offices, retail stores, banks, and city surveillance, where their power supply and IP network connections are already settled. VS8100 supports a variety types of analog cameras, including PTZ cameras with its Pan/Tilt/Zoom control through the built-in RS-485 port. With the high-performance H.264 compression format, it drastically reduces the file sizes and conserves valuable bandwidth and storage space. Supporting simultaneous multiple streams, the video streams can be transmitted in either of H.264 or MJPEG formats for versatile applications. The streams can also be individually configured with separate frame rates, resolution, and image quality so as to meet different platforms or bandwidth constraints. Together with the ST7501 multi-lingual 32-channel recording software, users can set up an easy-to-use IP surveillance system with ease. VIVOTEK also provides the smart phone application iViewer, both for iPhone and Android phones, enable users to monitor live video off-site.
